Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IEEE 802.3
IEEE 802.3u
IEEE 802.11i
IEEE 802.11e
IPv4
IPv6
Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
802.11n : up to 300 Mbps
802.11ac : up to 433 Mbps
Antenna
External antenna x 4
Transmit/Receive
MIMO technology
2.4 GHz 2 x 2
5 GHz 2 x 2
Memory
16 MB Flash
64 MB RAM
Operating Frequency
2.4GHz
5GHz

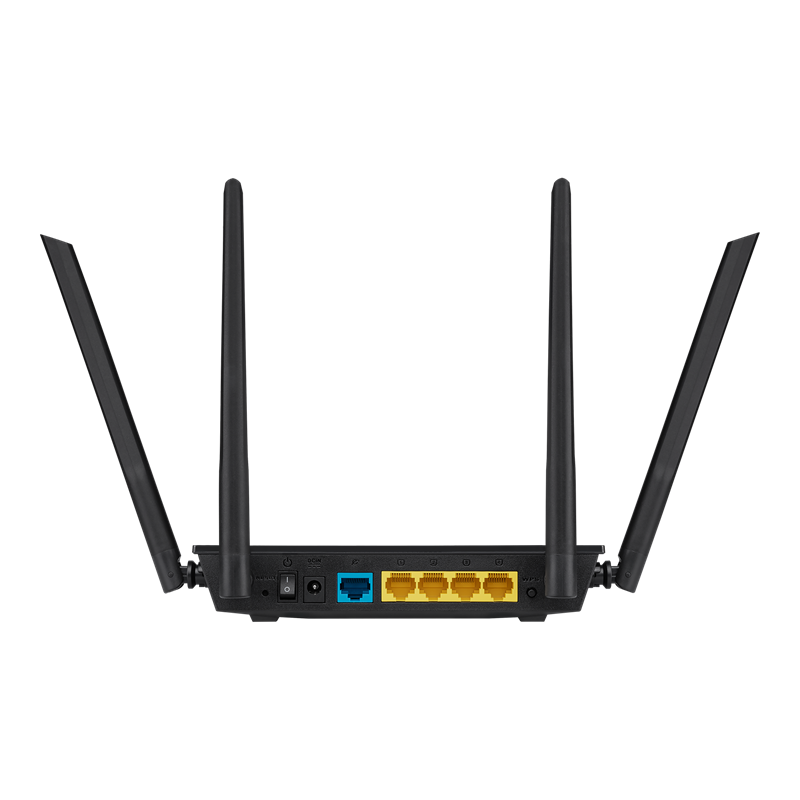

Ports
RJ45 for 10/100Mbps BaseT for WAN x 1
RJ45 for 10/100Mbps BaseT for LAN x 4
Button
WPS Button, Reset Button, Power Button
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 0.5 A current
Package content

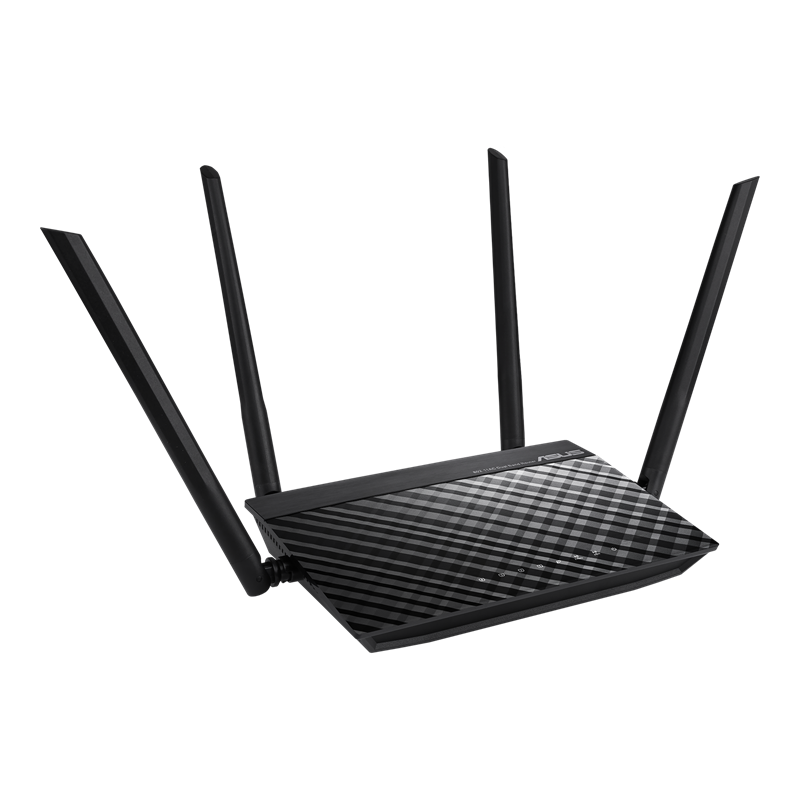

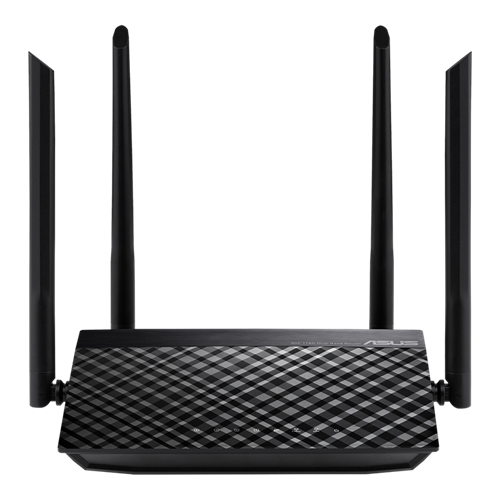

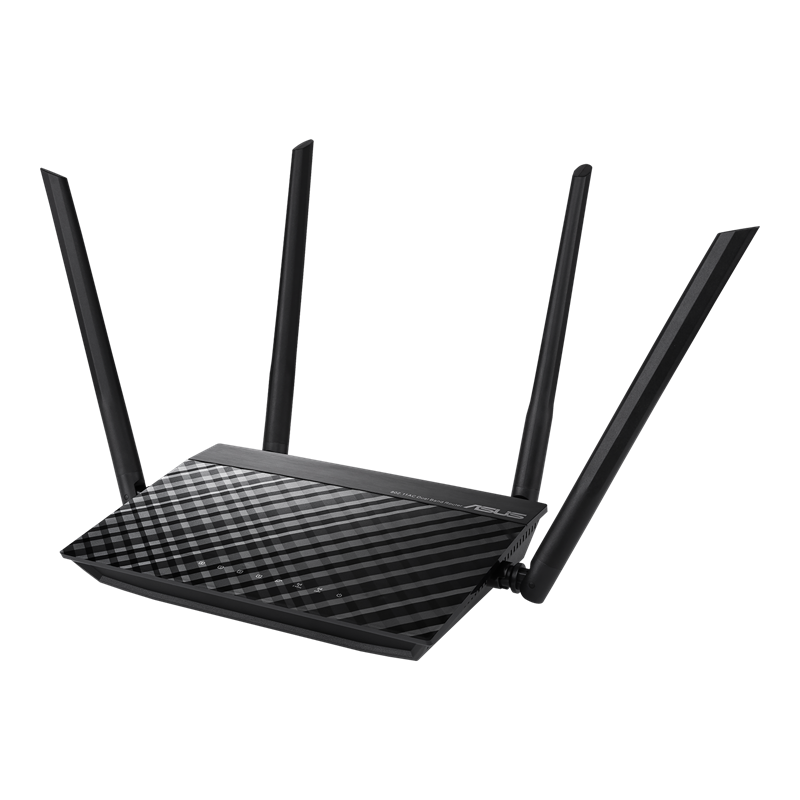

RT-AC750L Wi-Fi router
1 x RJ-45 cable
1 x Power adapter
1 x QSG
1 x Warranty card
AiMesh
AiMesh:No
Primary AiMesh router:No
AiMesh node:No
Router APP
ASUS Router APP:Yes
Game
Game Boost/acceleration:No
WTFast:No
Alexa
Support Alexa skill:No
AiProtection
AiProtection:No
Router Security Assessment:No
Malicious site blocking:No
Two-Way IPS:No
Infected Device Prevention and Blocking;No
Parental Control
Parental Control:Yes
Parental Control Customized Internet schedule:Yes
Traffic Control
Bandwidth Monitor:No
Bandwidth limiter:Yes
Maximum Bandwidth limiter rule:32
Traditional QoS:Yes
Maximum Traditional QoS rule:32
Traffic Monitor:Yes
Real-time traffic monitor:Yes
Wired Traffic Monitor:Yes
Wireless Traffic Monitor:Yes
Traffic Analyzer:No
Traffic analysis period:Daily, Weekly, Monthly
Website history:No
Wireless
IPv6:Yes
MU-MIMO:No
Wi-Fi Encryption:Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise
UTF-8 SSID:Yes
Guest Network:Yes
Maximum Guest Network rule:2.4GHz x3, 5GHz x3
Guest Network Encryption:Open system, WPA/WPA2-Personal
WPS:Yes
Wi-Fi MAC address filter:Yes
Maximum MAC filters:64
Wireless scheduler:Yes
Airtime fairness:Yes
RADIUS Server:Yes
Universal beamforming:No
Explicit beamforming:Yes
WAN
Internet connection Type:PPPoE, PPTP, L2TP, Automatic IP, Static IP
WAN Aggregation:No
3G/4G LTE dongle:No
Android tethering:No
Port forwarding:Yes
Maximum port forwarding rule:64
Port triggering:Yes
Maximum port triggering rule:32
DMZ:Yes
DDNS:Yes
NAT Passthrough:PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
LAN
DHCP Server:Yes
IGMP snooping:Yes
IPTV:Yes
LAN Link Aggregation:No
Manually assign IP address:Yes
Maximum manually assign IP address rule:64
VPN
VPN Client L2PT:No
VPN Client OVPN:No
VPN Client PPTP:No
VPN Server IPSec:No
VPN Server OVPN:No
VPN Server PPTP:No
VPN Fusion:No
USB application
File System:FAT16, FAT32, NT3G
3G/4G LTE dongle:No
HDD hibernation:No
Safely Remove disk:No
AiCloud:No
Download master:No
AiDisk:No
Media Server:No
Time Machine:No
Samba Server:No
FTP Server:No
Shared Folder privileges:No
Administration
Operating mode:Accesspoint, Router
Operating system:ASUSWRT
Free OS upgrade:Yes
Firewall:Yes
Maximum Firewall keyword filter:64
Maximum Firewall network service filter:32
Maximum Firewall URL filter:64
Wake on LAN (WOL):Yes
SSH:Yes
Configuration backup and restore:Yes
Diagnosis tools:Yes
Feedback system:Yes
System log:Yes
