Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IEEE 802.11ax
IPv4
IPv6
Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
802.11n : up to 300 Mbps
802.11ac (1024QAM) : up to 4333 Mbps
802.11ax (2.4GHz) : up to 574 Mbps
802.11ax (5GHz) : up to 4804 Mbps
Antenna
External antenna x 4
Transmit/Receive
2.4 GHz 2 x 2
5 GHz-2 4 x 4
Processor
1.5 GHz tri-core processor
Memory
256 MB Flash
512 MB RAM
Boosts speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
2.4G Hz / 5 GHz
Ports
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
USB 3.2 Gen 1 x 1
Button
WPS Button, Reset Button, Power Switch, LED on/off
LED Indicator
Power x 1
2.4G x 1
5G x 1
WAN x 1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current
Package content

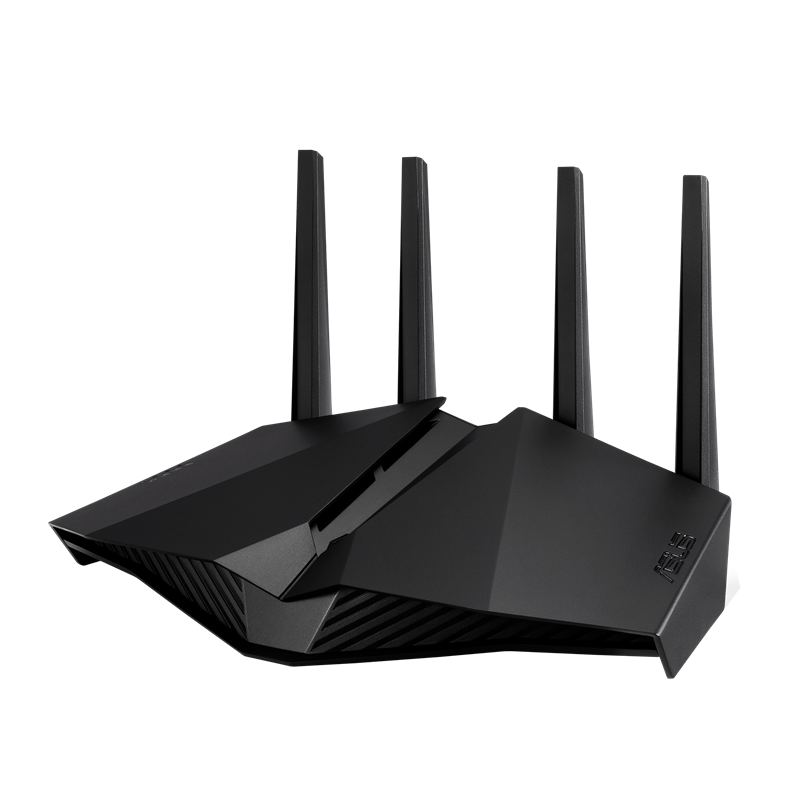

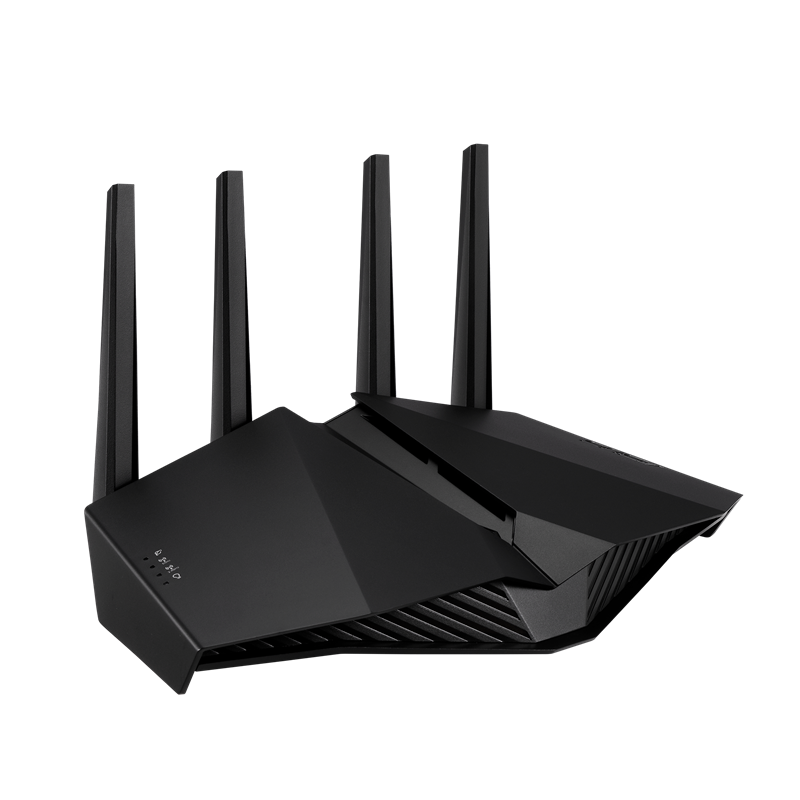

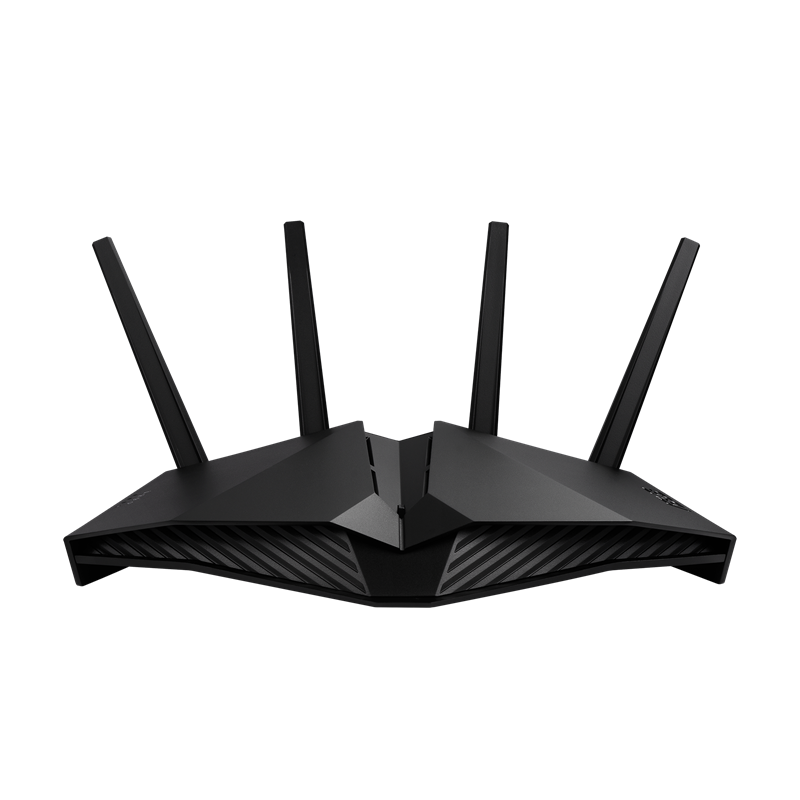

RT-AX82U Router
RJ-45 cable
Power adapter
Warranty card
Quick start guide
AiMesh
AiMesh:Yes
Primary AiMesh router:Yes
AiMesh node:Yes
Router APP
ASUS Router APP:Yes
Game
Game Boost/acceleration:Yes
Alexa
Support Alexa skill:Yes
AiProtection
AiProtection:AiProtection Pro
Router Security Assessment:Yes
Malicious site blocking:Yes
Two-Way IPS:Yes
Infected Device Prevention and Blocking;Yes
Parental Control
Parental Control:Yes
Parental Control Customized Internet schedule:Yes
Traffic Control
Adaptive QoS:Yes
Bandwidth Monitor:Yes
Bandwidth limiter:Yes
Maximum Bandwidth limiter rule:32
Traditional QoS:Yes
Maximum Traditional QoS rule:32
Traffic Monitor:Yes
Real-time traffic monitor:Yes
Wired Traffic Monitor:Yes
Wireless Traffic Monitor:Yes
Traffic Analyzer:Yes
Traffic analysis period:Daily, Weekly, Monthly
Website history:Yes
Wireless
IPv6:Yes
MU-MIMO:Yes
Wi-Fi Encryption:WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
UTF-8 SSID:Yes
Guest Network:Yes
Maximum Guest Network rule:2.4GHz x3, 5GHz x3
WPS:Yes
Wi-Fi MAC address filter:Yes
Maximum MAC filters:64
Wireless scheduler:Yes
Airtime fairness:Yes
RADIUS Server:No
Universal beamforming:Yes
Explicit beamforming:Yes
WAN
Internet connection Type:PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN:Yes
3G/4G LTE dongle:Yes
Android tethering:Yes
Port forwarding:No
Maximum port forwarding rule:64
Port triggering:Yes
Maximum port triggering rule:32
DMZ:Yes
DDNS:Yes
NAT Passthrough:PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay
LAN
DHCP Server:Yes
IGMP snooping:Yes
IPTV:Yes
Manually assign IP address:Yes
Maximum manually assign IP address rule:64
VPN
VPN Client L2PT:Yes
VPN Client OVPN:Yes
VPN Client PPTP:Yes
VPN Server IPSec:Yes
VPN Server OVPN:Yes
VPN Server PPTP:Yes
VPN Fusion:No
USB application
File System:HFS+, NTFS, vFAT, ext2, ext3, ext4
3G/4G LTE dongle:Yes
HDD hibernation:Yes
Safely Remove disk:Yes
AiCloud:Yes
Download master:Yes
AiDisk:Yes
Media Server:Yes
Time Machine:Yes
Samba Server:Yes
FTP Server:Yes
Shared Folder privileges:Yes
Administration
Operating mode:Wireless router mode
Access point mode
Media bridge mode
Repeater mode
AiMesh node mode
Operating system:ASUSWRT
Free OS upgrade:Yes
Firewall:Yes
Maximum Firewall keyword filter:64
Maximum Firewall network service filter:32
Maximum Firewall URL filter:64
Wake on LAN (WOL):Yes
SSH:Yes
Configuration backup and restore:Yes
Diagnosis tools:Yes
Feedback system:Yes
System log:Yes
