Manufacturer: Thermaltake

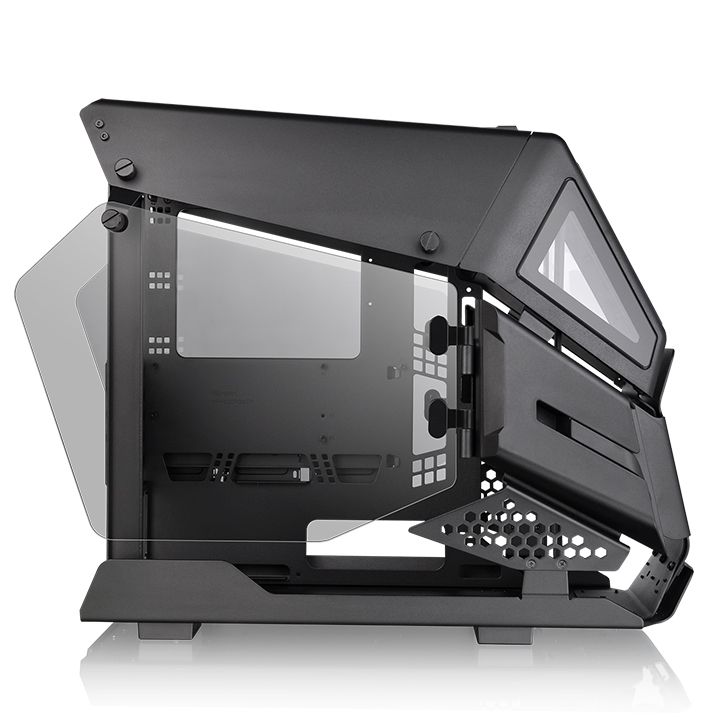

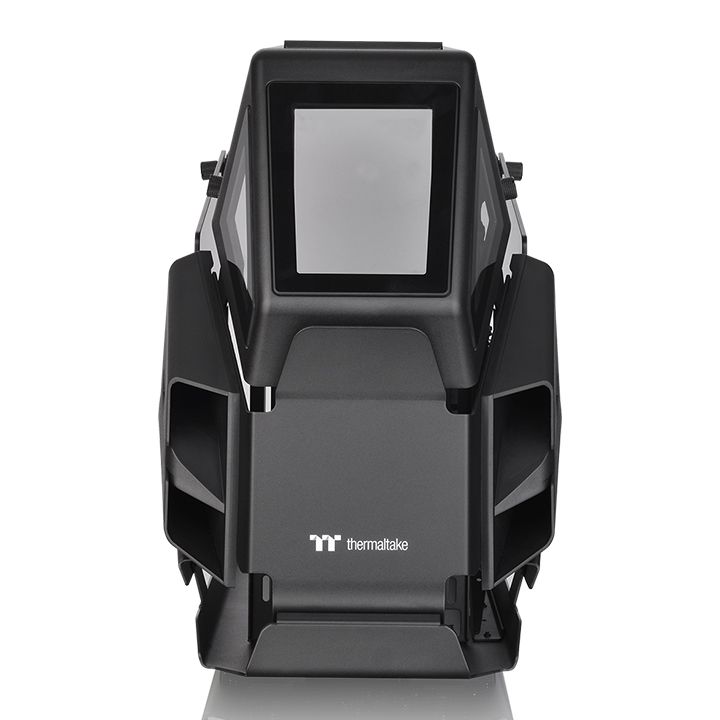

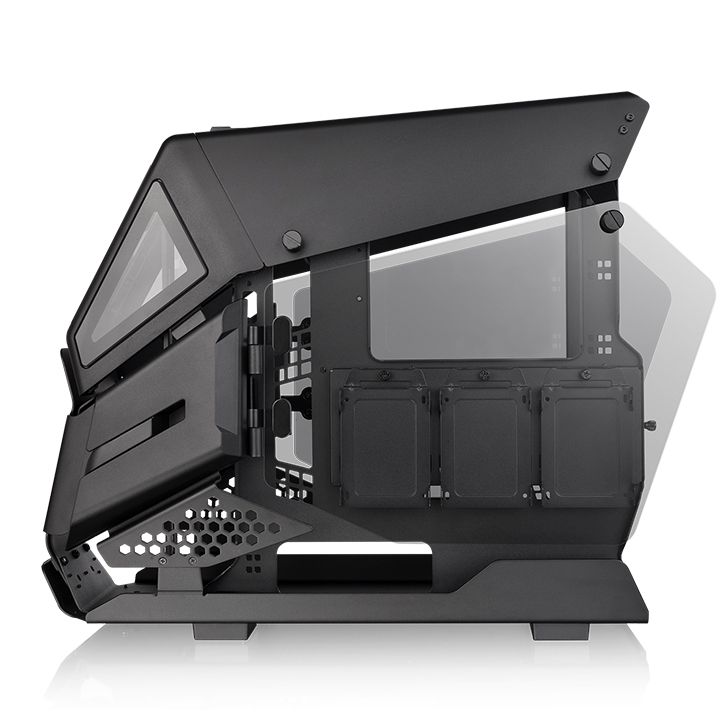

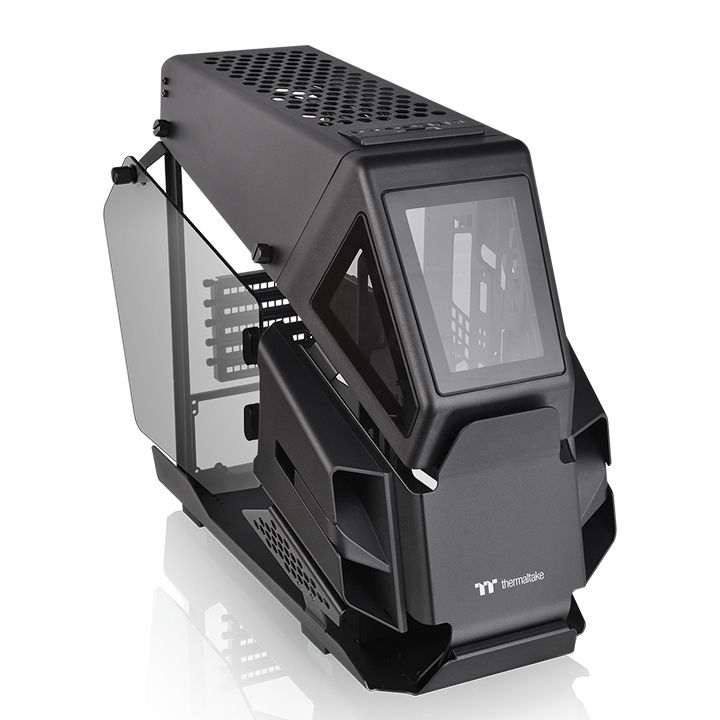

The Thermaltake AH T200 is a helicopter styled open frame micro chassis which comes with two 4mm tempered glass panels on left and right sides and can support motherboards up to Micro ATX.
3Years Warranty
| P/N | CA-1R4-00S1WN-00 |
|---|---|
| SERIES | AH Series |
| MODEL | AH T200 |
| CASE TYPE | Micro Case |
| DIMENSION (H X W X D) | 444.2 x 282 x 551.5 mm (17.5 x 11.1 x 21.7 inch) |
| NET WEIGHT | 10.8 kg / 23.8 lb |
| SIDE PANEL | Tempered Glass x 2 |
| COLOR | Black |
| MATERIAL | SPCC |
| COOLING SYSTEM | N/A |
| DRIVE BAYS -ACCESSIBLE -HIDDEN | 2 x 3.5" or 3 x 2.5” (3.5” HDD thickness limitation: 22mm) - |
| EXPANSION SLOTS | 5 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX) |
| I/O PORT | USB 3.1 (Gen 2) Type C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Front: 2 x 120mm or 1 x 120mm 2 x 140mm or 1 x 140mm Top: 2 x 120mm or 1 x 120mm 2 x 140mm or 1 x 140mm |
| RADIATOR SUPPORT | Front: 1 x 240mm or 1 x 120mm 1 x 280mm or 1 x 140mm |
| CLEARANCE | CPU cooler max height: 150mm VGA max length: 320mm PSU max length: 180mm 3.5” HDD thickness limitation: 22mm |
