Stock Status: In Stock
Manufacturer: Thermaltake

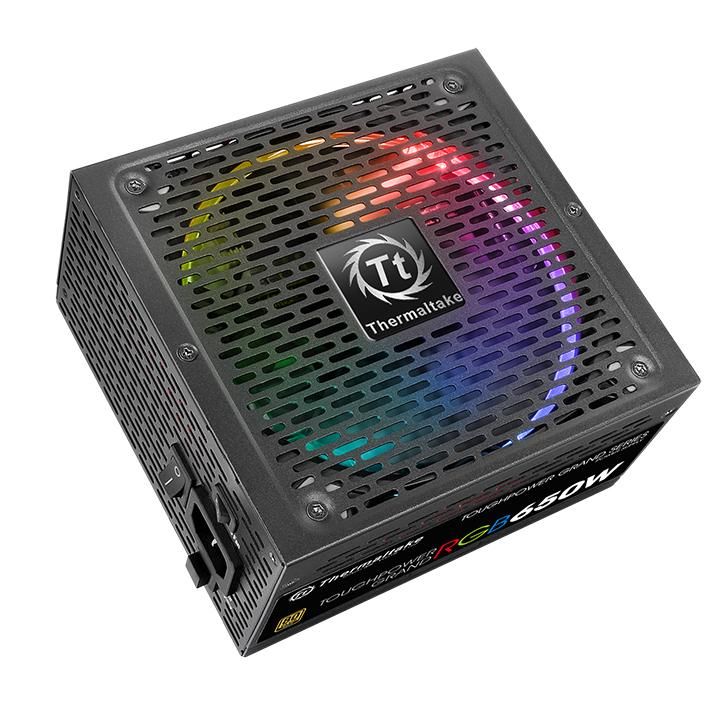

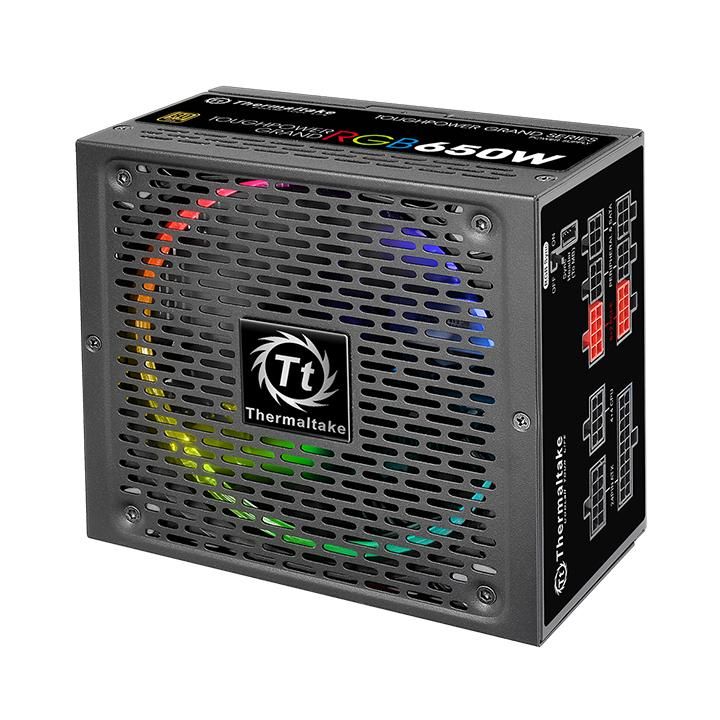

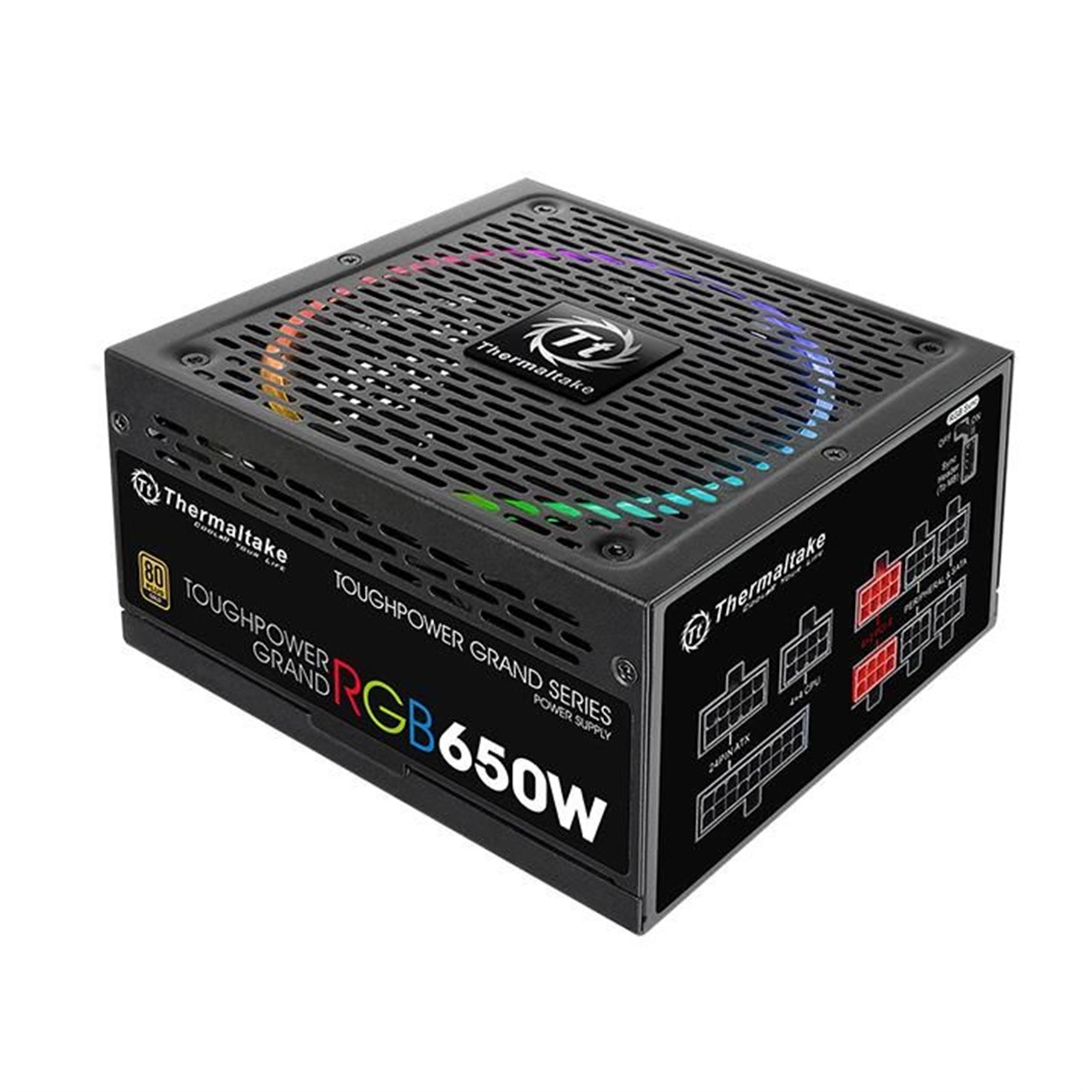

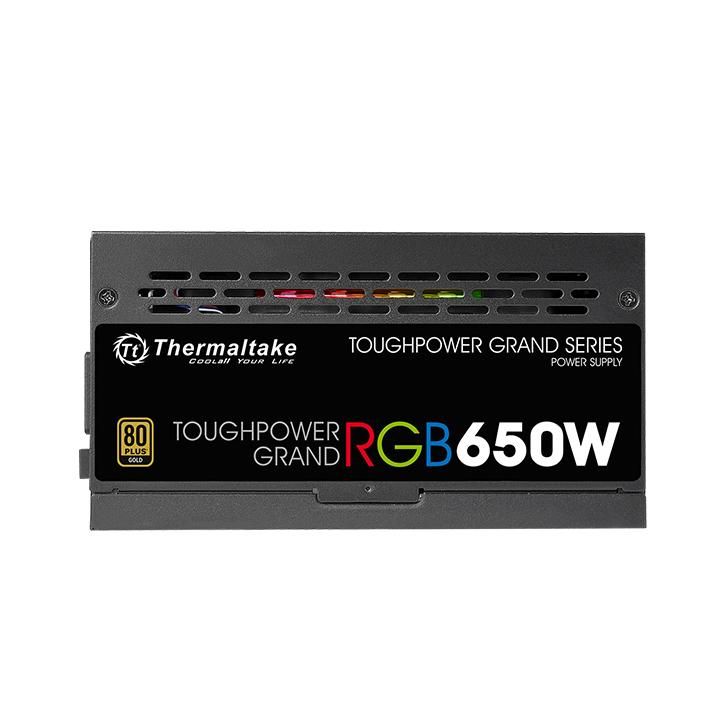

Toughpower Grand Series PS-TPG-0650FPCGxx-S - 650W 80 PLUS® Gold Certified Fully Modular APFC PSU
5Years Warranty
| P/N | PS-TPG-0650FPCGxx-S |
|---|---|
| WATTS | 650W |
| RGB FAN | Yes |
| FORM FACTOR | ATX |
| MODEL | TPG-650AH3FSGR |
| TYPE | ATX 12V v2.4 and EPS v2.92 |
| MAX. OUTPUT CAPACITY | 650W |
| PEAK OUTPUT CAPACITY | 780W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 150mm(W) x 86mm(H) x 160mm(D) |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-500 msec |
| HOLD UP TIME | > 16msec at 100% of full load |
| INPUT CURRENT | 10A |
| INPUT FREQUENCY RANGE | 50Hz - 60Hz |
| INPUT VOLTAGE | 100V – 240V~ |
| OPERATING TEMPERATURE | 0°C to + 50°C |
| OPERATING HUMIDITY | 20% to 90%,non-condensing |
| STORAGE TEMPERATURE | -40°C to + 70°C |
| STORAGE HUMIDITY | 20% to 95%, non-condensing |
| COOLING SYSTEM | 14cm hydraulic bearing fan |
| EFFICIENCY | Meet 80 PLUS®Gold at 115Vac input. |
| MTBF | 120,000 hrs minimum |
| SAFETY APPROVAL | CE/cTUVus/TÜV SÜD/FCC/CCC/BSMI/EAC |
| PCI-E 6+2PIN | 4 |
| PROTECTION | OVP,SCP,OPP,UVP,OTP,OCP |
