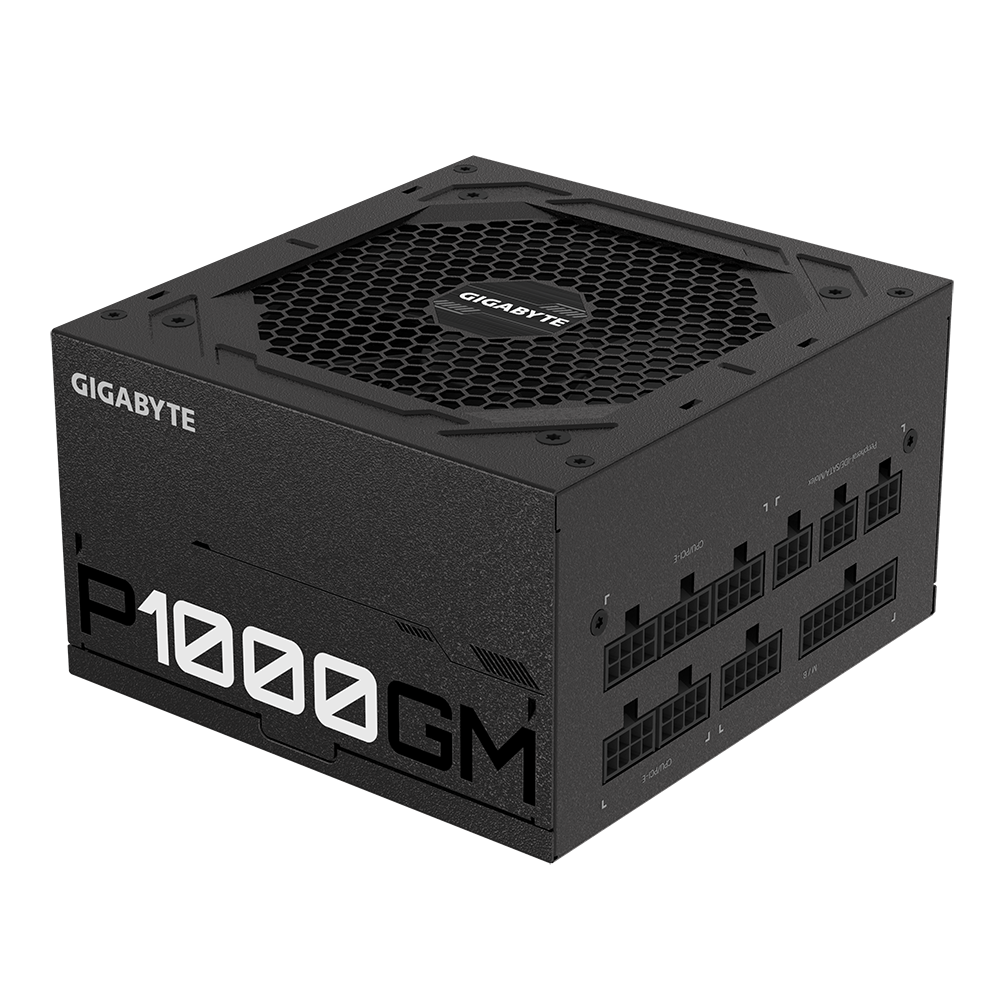

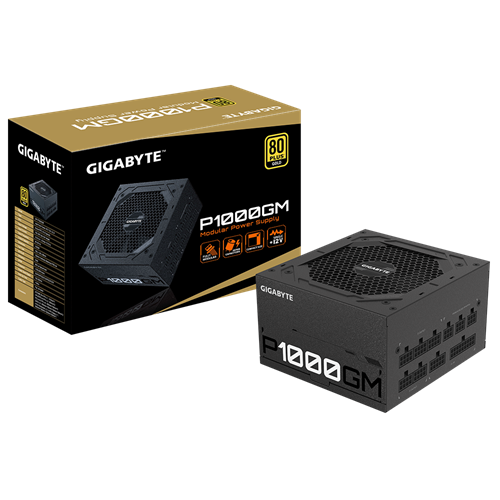

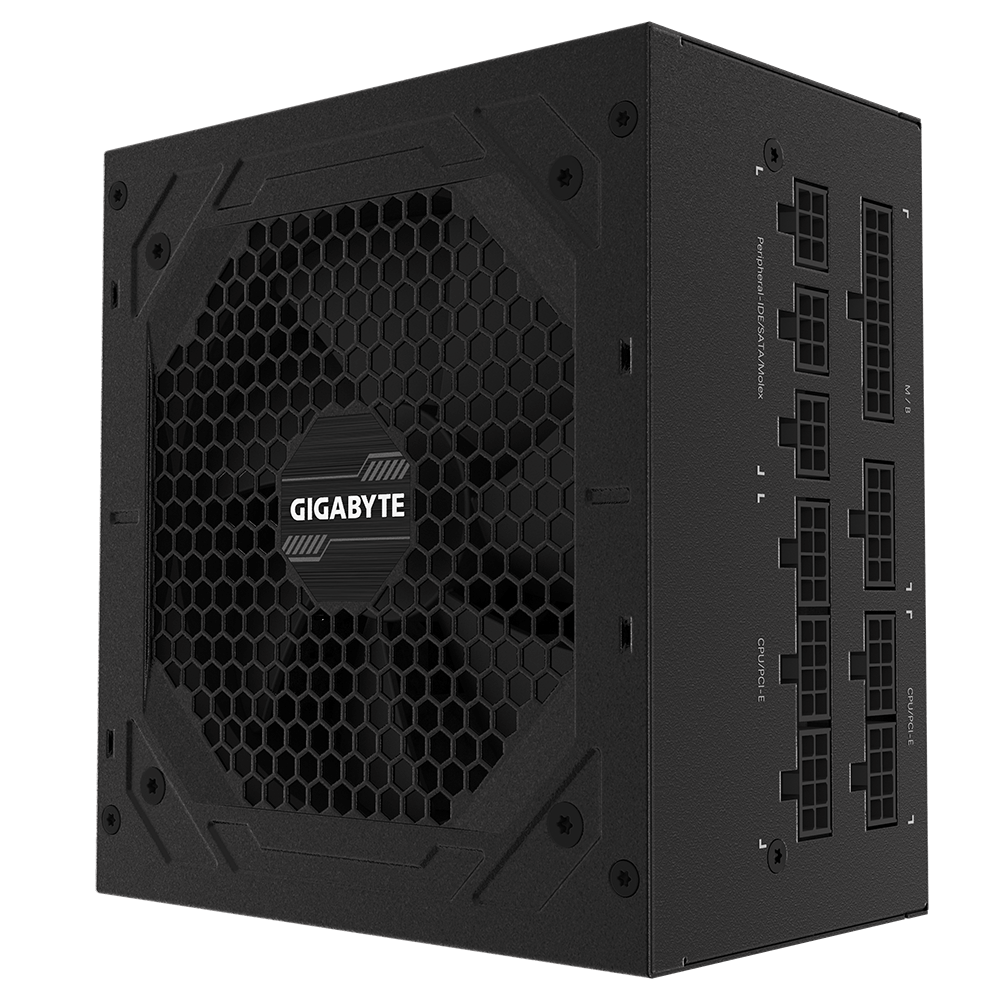

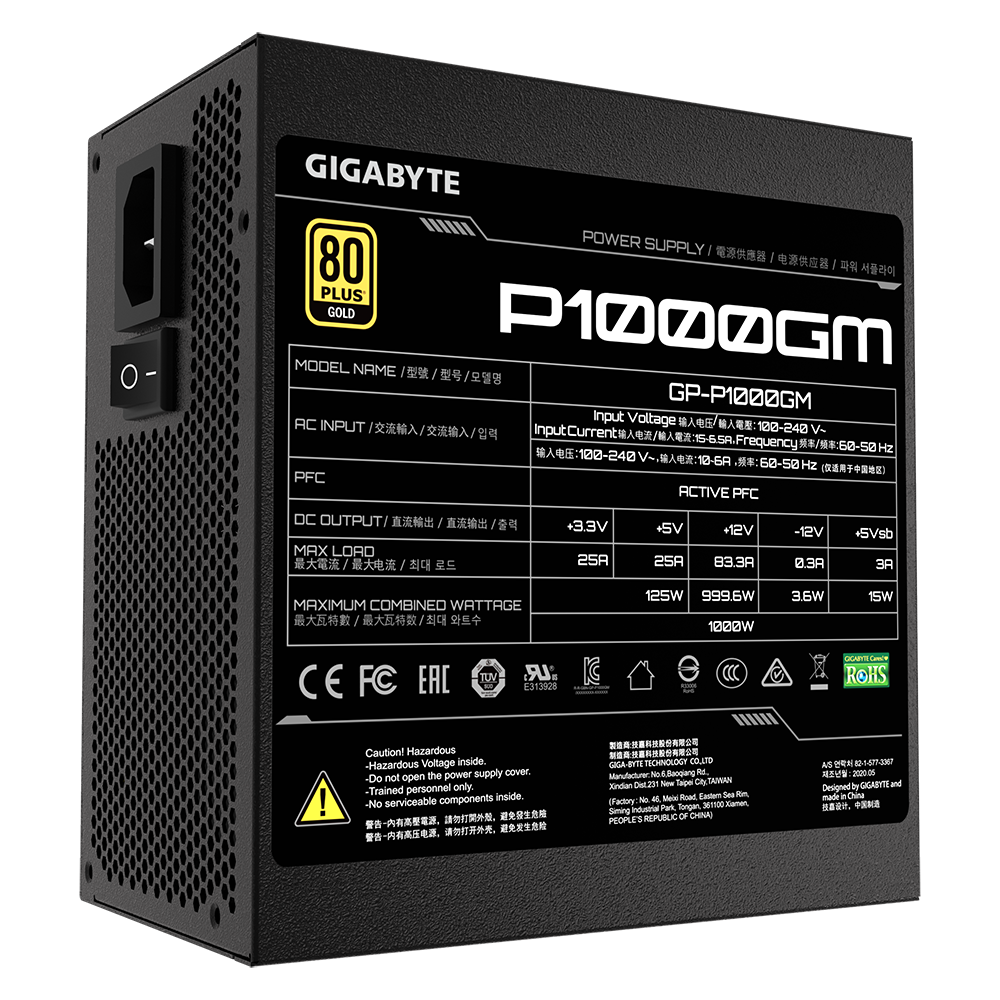

GIGABYTE P1000GM

$175 $195

Stock Status: In Stock

Manufacturer: GIGABYTE

Features

  • 80 PLUS Gold certified
  • Fully modular design
  • 120mm Smart Hydraulic Bearing (HYB) Fan
  • Main Japanese capacitors
  • Powerful single +12V rail
  • OVP/OPP/SCP/UVP/OCP/OTP protection
  • Compact size

2Years Warranty

  • Model
    GP-P1000GM
  • Type
    Intel Form Factor ATX 12V v2.31
  • PFC
    Active PFC (>0.9 typical)
  • Input Voltage
    100-240 Vac (full range)
  • Input Current
    15-6.5 A , (China: 10-6 A)
  • Input Frequency
    60-50 Hz
  • Output Capacity
    1000W
  • Dimension
    150 x 140 x 86 mm
  • Fan Type
    120mm Hydraulic Bearing ( HYB ) fan
  • 80 PLUS
    Gold
  • Efficiency
    90% at typical load
  • MTBF
    >100,000 hours
  • Protection
    OVP/OPP/SCP/UVP/OCP/OTP
  • Power Good Signal
    100-500ms
  • Hold Up Time
    >16ms
  • Cable Type
    Flat, All black

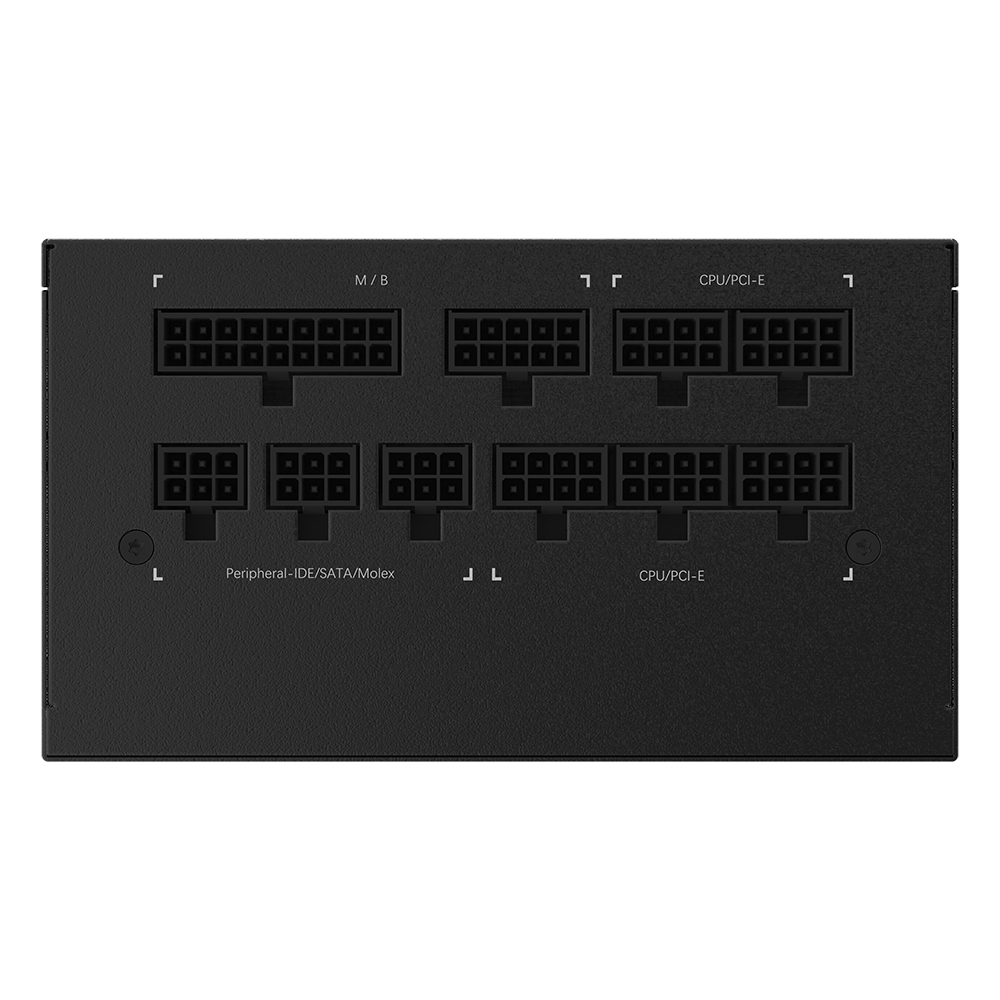

  • Connectors
    ATX/MB 20+4 Pin x 1 : 610mm*1
    CPU/EPS 4+4 Pin x 2 : 600mm*2
    PCI-e 6+2 Pin x 6 : 600mm+150mm*3
    SATA x 8 : 600mm+150mm+150mm+150mm*2 :
    4 Pin Peripheral x 3 + 4-Pin floppy x 1 :
    500mm+120mm+120mm+120mm *1
