ASUS ROG STRIX X570-F GAMING

$279

Stock Status: Out of stock

Manufacturer: ASUS

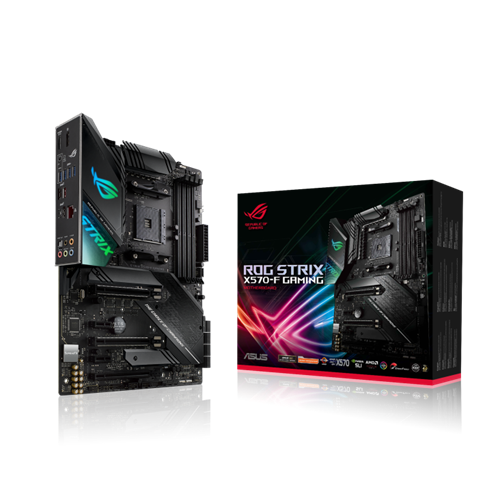

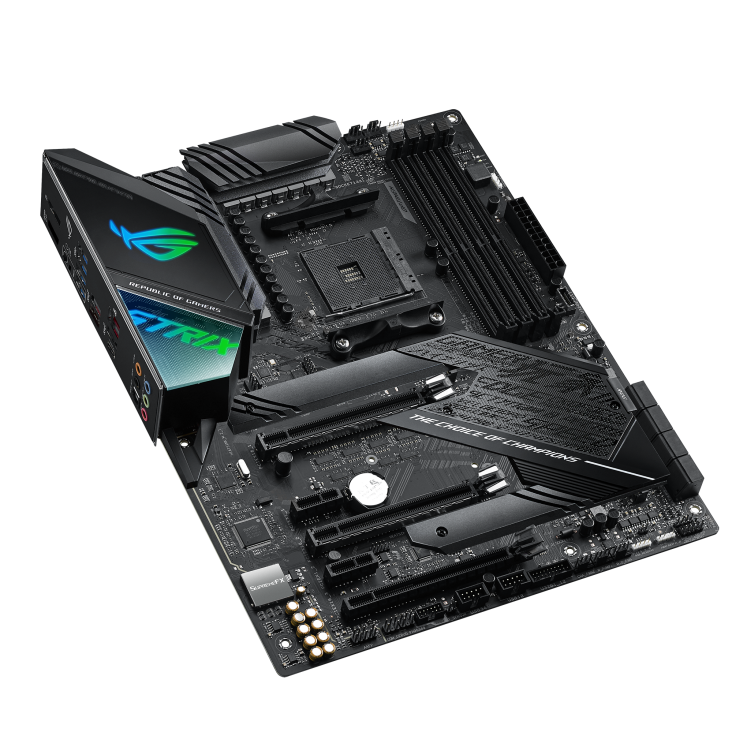

ROG Strix X570-F Gaming

AMD X570 ATX gaming motherboard with PCIe 4.0, Intel Gigabit Ethernet, 14 power stages, dual M.2 with heatsinks, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB lighting

AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series desktop processors; also supports up to two M.2 drives and features USB 3.2 Gen 2 and AMD StoreMI to maximize connectivity and speed
Aura Sync RGB: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 GRB headers
Optimal Power Solution: 12+2 power stages with ProCool II power connector, alloy chokes and durable capacitors to support multi-core processors
Comprehensive cooling: Active chipset heatsink, MOS heatsink with 8mm heatpipe, dual on-board M.2 heatsinks and a water pump + header
Gaming connectivity: Supports PCIe 4.0, HDMI 2.0, DisplayPort 1.2 and features dual M.2 and USB 3.2 Type-A and Type-C connectors
Gaming networking: Intel Gigabit Ethernet, ASUS LANGuard and GameFirst
5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig
Gaming audio: High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action
Easy DIY: ROG-patented pre-mounted I/O shield, ASUS SafeSlot, ASUS Node connector and BIOS FlashBack™ for a friendlier building experience

3 Years Warranty

Description

ROG Strix X570-F Gaming

CPU

* Refer to www.asus.com for CPU support list

AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors

Chipset

AMD X570

Memory

Dual Channel Memory Architecture

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *

4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory

4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory

AMD Ryzen^TM 4000 G-Series Processors

4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4866(O.C)/4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *

AMD Ryzen^TM 2000 Series Processors

Graphic

Multi-VGA output support : HDMI/DisplayPort ports

- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz

- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz

Integrated Graphics in AMD Ryzen™ 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors

Multi-GPU Support

Supports AMD 3-Way CrossFireX™ Technology

Supports AMD 2-Way CrossFireX™ Technology

Supports NVIDIA 2-Way SLI® Technology

AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 2000 Series Desktop Processors>

AMD Ryzen™ 3000 G-Series/ 2000 G-Series Desktop Processors

Expansion Slots

2 x PCIe 4.0 x16 (x16 or dual x8)

2 x PCIe 3.0 x16 (x16 or dual x8)

1 x PCIe 3.0 x16 (x8 mode)

AMD X570 chipset

1 x PCIe 4.0 x16 (max at x4 mode) *¹

2 x PCIe 4.0 x1

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

AMD Ryzen^TM 4000 G-Series / 2000 Series Processors

AMD Ryzen^TM 3000 G-Series / 2000 G-Series Processors

Storage

1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support

1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support

AMD X570 chipset :

1 x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support

8 x SATA 6Gb/s port(s),

Support Raid 0, 1, 10

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :

AMD Ryzen^TM 4000 G-Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors :

LAN

Intel® I211-AT, 1 x Gigabit LAN Controller(s)

Anti-surge LANGuard

ROG GameFirst Technology

Audio

SupremeFX8-Channel High Definition Audio CODEC S1220A

- Dual OP Amplifiers

- Impedance sense for front and rear headphone outputs

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality120dBSNR stereo playback outputand113dBSNR recording input

- SupremeFX Shielding Technology

- Supports up to 32-Bit/192kHz playback *²

Audio Feature :

- Optical S/PDIF out port(s) at back panel

- Sonic Radar III

- Sonic Studio III + Sonic Studio Link

USB Ports

4 x USB 3.2 Gen 1 port(s) (4 at back panel, )

1 x USB 3.2 Gen 2 front panel connector port(s)

4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C)

2 x USB 3.2 Gen 1 port(s) (2 at mid-board)

AMD X570 chipset :

4 x USB 2.0 port(s) (4 at mid-board)

AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors :

ROG Exclusive Features

ROG Exclusive Software

- RAMCache III

- CPU-Z

- GameFirst V

- Overwolf

Special Features

5-Way Optimization by Dual Intelligent Processors 5

- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.

TPU

- Auto Tuning, TurboV, GPU Boost

Gamer´s Guardian:

- DRAM Overcurrent Protection

- Stainless Steel Back I/O

- Highly Durable components

- Digi+ VRM

- SafeSlot

- ESD Guards on LAN, Audio,and USB ports

ASUS EPU :

- EPU

AURA :

- Aura Lighting Control

- Addressable Gen 2 Header

ASUS Exclusive Features :

- AI Suite 3

- Ai Charger

- ASUS NODE : hardware control interface

ASUS EZ DIY :

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

ASUS Q-Design :

- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

- ASUS Q-Slot

- ASUS Q-DIMM

Gaming Aesthetics :

- AURA-RGB Lighting

- USB BIOS FlashBack^™

- BIOS FlashBack^™ Button

Back I/O Ports

1 x DisplayPort

1 x HDMI

1 x Optical S/PDIF out

5 x Audio jack(s)

4 x USB 3.2 Gen 1 (up to 5Gbps) ports

3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)

1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)

Anti-surge LAN (RJ45) port

1 x USB BIOS FlashBack^™ Button(s)

Internal I/O Ports

1 x PCH_FAN

1 x AAFP connector

2 x Aura RGB Strip Header(s)

2 x Addressable Gen 2 header(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support

1 x SPI TPM header

8 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

2 x Chassis Fan connector(s)

1 x AIO_PUMP connector

1 x W_PUMP+ connector

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x Thermal sensor connector(s)

1 x Clear CMOS jumper(s)

1 x Node Connector(s)

1 x System panel connector

1 x T_Sensor Connector

1 x M.2 Fan Header

1 x USB 3.2 Gen 2 (up to 10Gbps) connector

1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

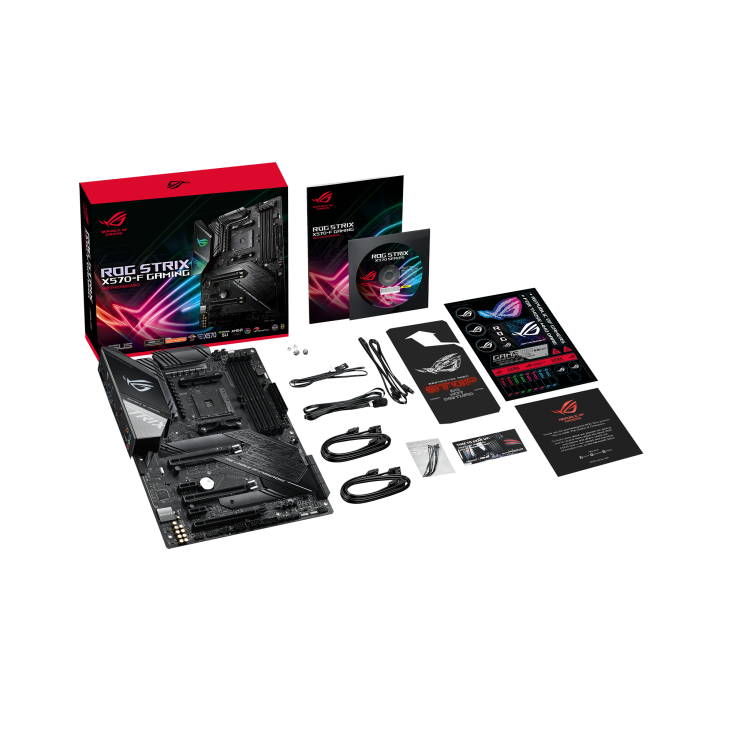

Accessories

User´s manual

4 x SATA 6Gb/s cable(s)

1 x M.2 Screw Package

1 x Supporting DVD

1 x Strix door hanger

1 x ROG Strix stickers

1 x Cable ties pack(s)

1 x Extension Cable for RGB strips (80 cm)

1 x Extension cable for Addressable LED

1 x Thermistor cable(s)

1 x ROG Thank you card

BIOS

256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2.

Manageability

WOL, PXE

Support Disc

Overwolf Anti-virus software (OEM version) WinRAR

Operating System

Windows® 10 64-bit

Form Factor

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Note

*1 PCIeX16_3 slot shares bandwidth with PCIeX1_2. *2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
