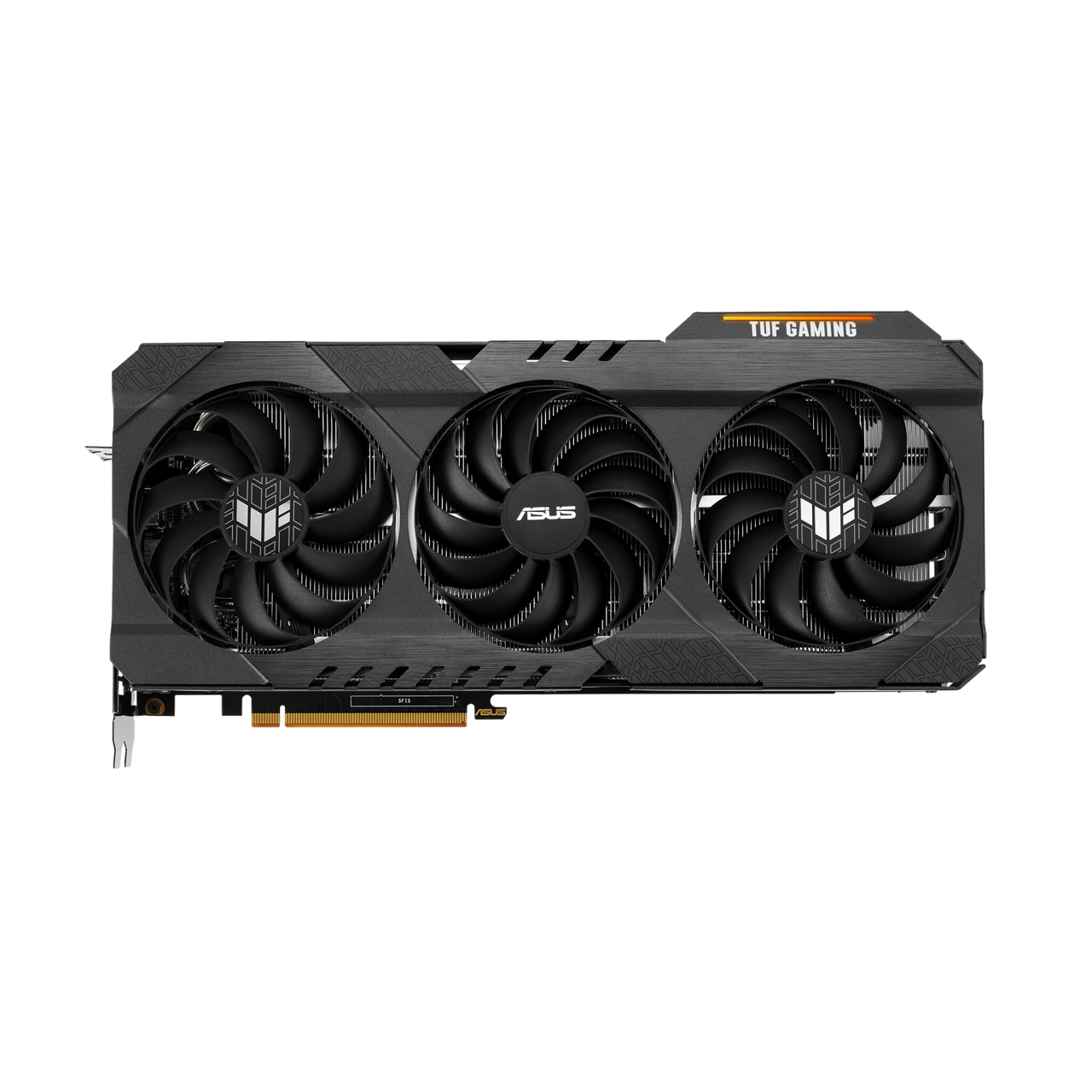

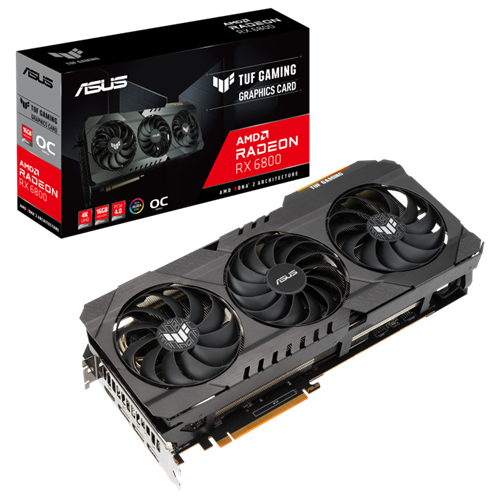

ASUS TUF GAMING RADEON RX 6800 16GB

$1,100

Stock Status: In Stock

Manufacturer: ASUS

TUF GAMING Radeon™ RX 6800 is a truly tenacious performer
  • Axial-tech fan design has been enhanced with more fan blades and a new rotation scheme.
  • Dual ball fan bearings can last up to twice as long as sleeve bearing designs.

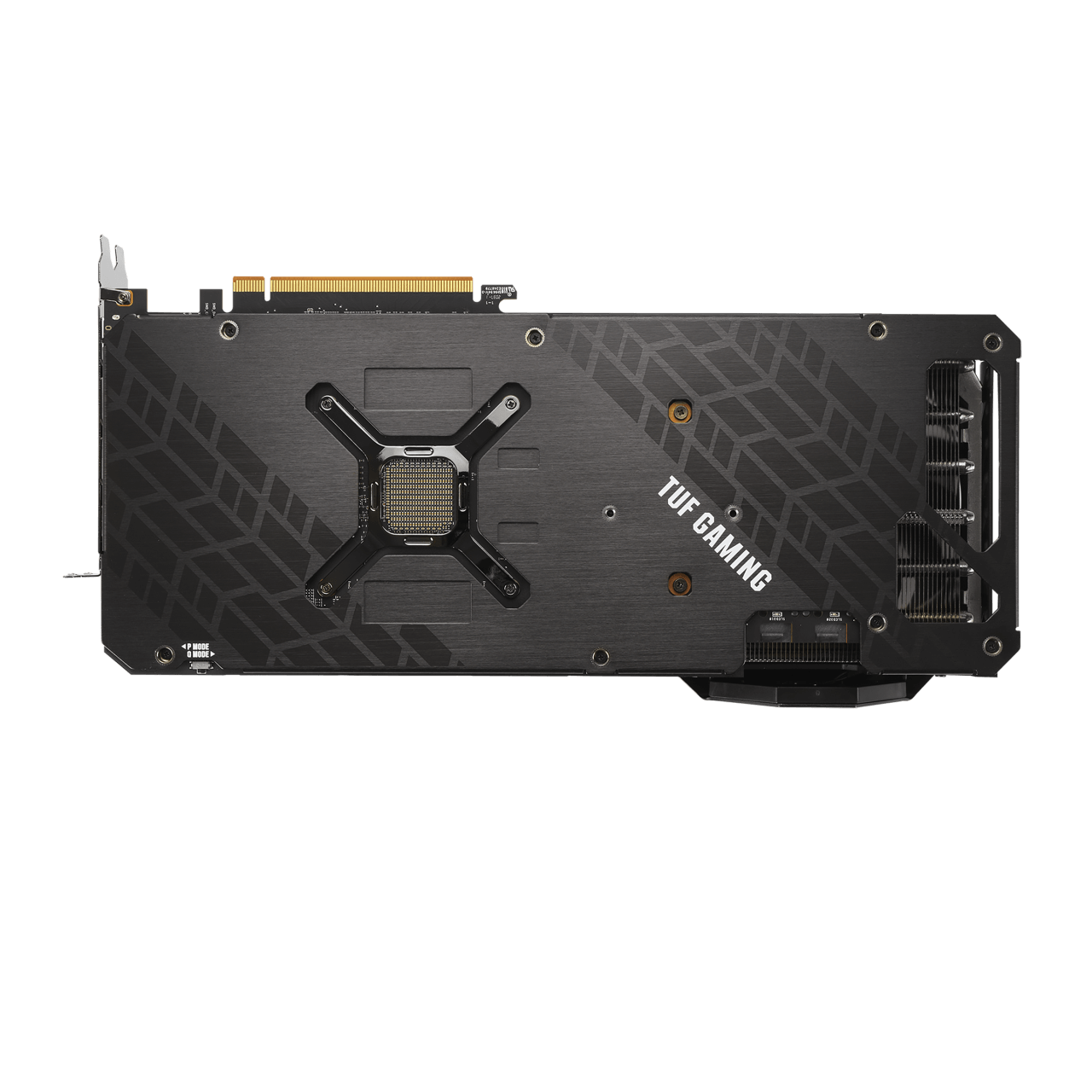

  • An all-aluminum shroud, reinforced frame, and metal backplate enhance durability.
  • MaxContact heat spreader features a super flat surface for improved thermal transfer.
  • 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.
  • vented backplate prevents hot air from recirculating through the cooling array.
  • GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.


Graphic Engine

AMD Radeon RX 6800

Bus Standard

PCI Express 4.0

OpenGL

OpenGL®4.6

Video Memory

16GB GDDR6

Engine Clock

OC mode : Up to 2190MHz (Boost Clock)/ Up to 1980 MHz (Game Clock)
Gaming mode : Up to 2155MHz (Boost Clock)/ Up to 1925 MHz (Game Clock)

Stream Processors

3840

Memory Speed

16 Gbps

Memory Interface

256-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 1 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink/ Crossfire Support

Yes

Accessories

1 x TUF certificate of Reliability
1 x Collection card
1 x Speedsetup manual
1 x ASUS ruler

Software

ASUS GPU Tweak II & Drivers: please download all software from the support site.

Dimensions

13 " x 5.52 " x 2.28 " Inch
32 x 14.02 x 5.78 Centimeter

Recommended PSU

650W

Power Connectors

2 x 8-pin

Slot

2.9 Slot

Note

* Crossfire Support - Yes for DirecX® 12 and Vulkan®
* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
* ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
Prices and specification and stock availability are subjected to change without prior notice please Contact Us to confirm. Thank you for choosing Gaming Store.
