Manufacturer: Thermaltake

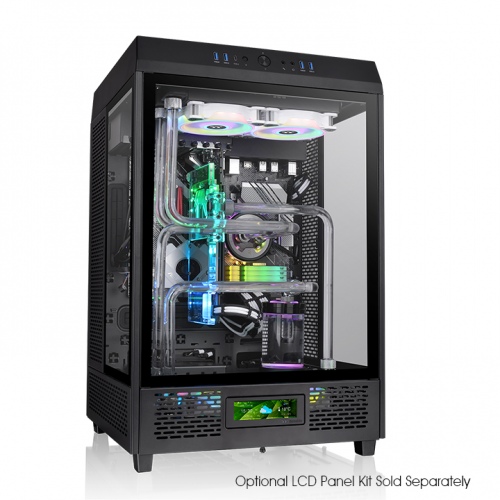

The Tower 500 is a vertically designed case with three 4mm tempered glass panels for panoramic viewing, along with two pre-installed 120mm standard fans. This chassis supports up to 12" x 12" E-ATX motherboards giving you comprehensive flexibility for enhanced expansion options. It can also be paired with a separately sold LCD panel kit with a 3.9" LCD Display for maximizing the PC's visual effects.
| P/N | CA-1X1-00M1WN-00 |
|---|---|
| SERIES | The Tower |
| CASE TYPE | Mid Tower |
| DIMENSION (H X W X D) | 608 x 388 x 398 mm (23.9 x 15.3 x 15.3 inch) |
| NET WEIGHT | 14.8 kg / 32.6 lbs. |
| SIDE PANEL | 4mm Tempered Glass x 3 |
| COLOR | Black |
| MATERIAL | SPCC |
| COOLING SYSTEM | Rear(exhaust): 120 x 120 x 25 mm Standard fan (1500rpm, 35.8 dBA) x 2 |
| DRIVE BAYS | 4 x 3.5”, 8 x 2.5” or 8 x 3.5” |
| EXPANSION SLOTS | 9 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 12” (E-ATX) |
| I/O PORT | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 4, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Top: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right Side: 3 x 120mm, 2 x 120mm, 1 x 120mm Rear: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Power Cover: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Bottom(Vertical/Horizontal): 2 x 120mm, 1 x 120mm |
| RADIATOR SUPPORT | Top: 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Right Side: 1 x 360mm or 1 x 360mm Custom LCS radiator (max length 399mm), 1 x 240mm, 1 x 120mm Bottom(Vertical/Horizontal): 1 x 240mm, 1 x 120mm |
| CLEARANCE | CPU cooler height limitation: 275mm VGA length limitation: 325mm(With power cover) 355mm(Without power cover) PSU length limitation: 200mm |
