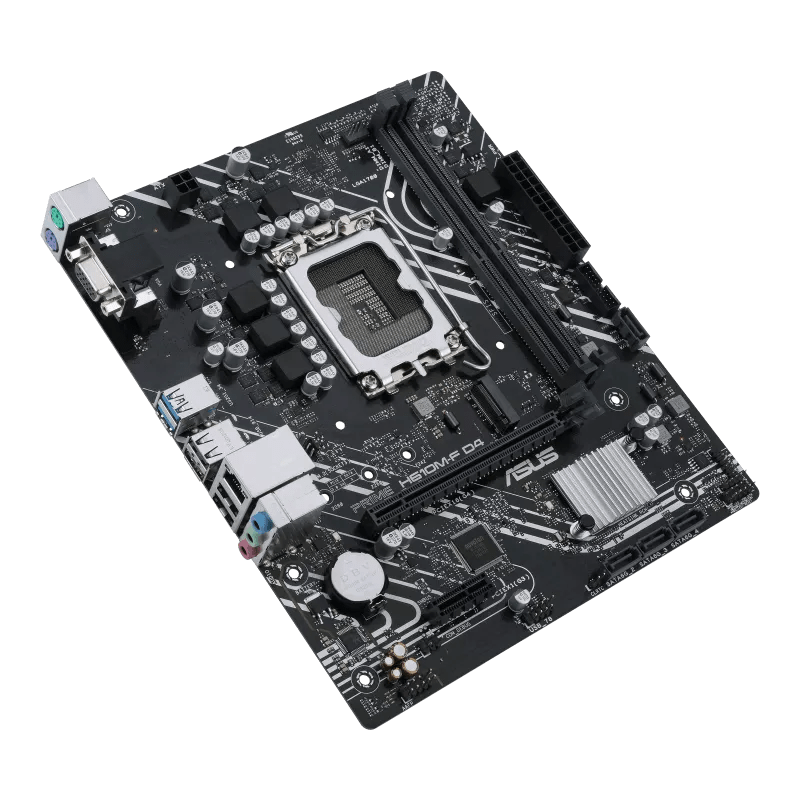

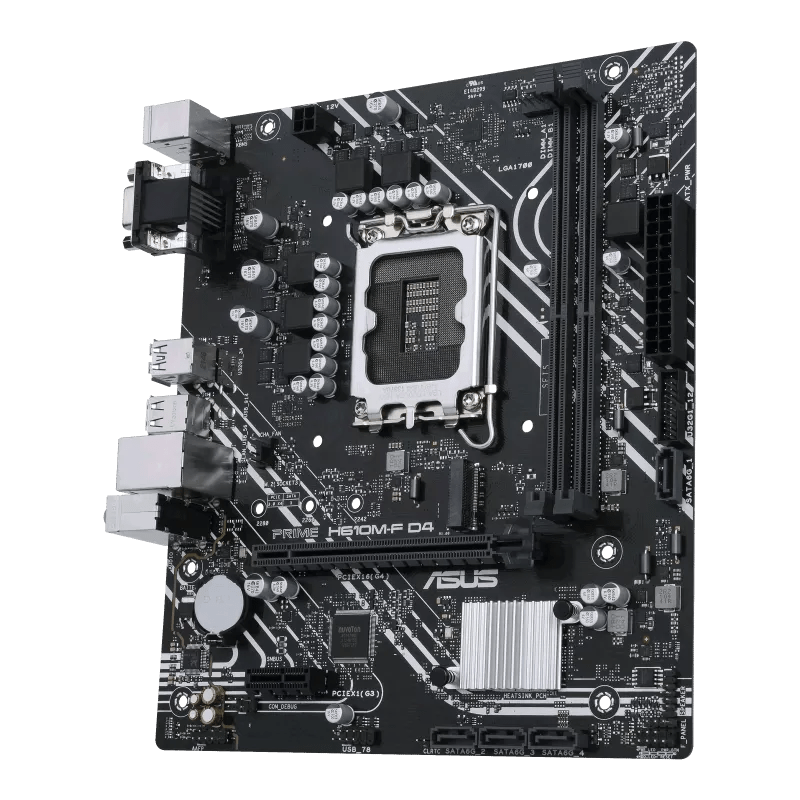

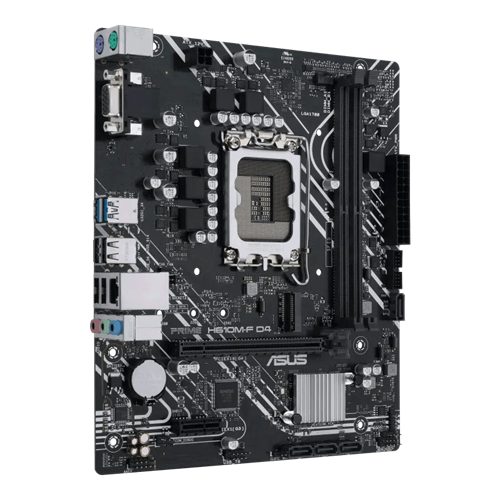

ASUS Prime H610M-F D4

$119

Stock Status: Out of stock

Manufacturer: ASUS

Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps

Intel® LGA 1700 socket: Ready for 13th & 12th Gen Intel® processors

Comprehensive cooling: PCH heatsink

Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1

5X Protection III: Multiple hardware safeguards for all-round protection

Model         PRIME H610M-F D4
CPU           Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
                 Supports up to Intel® 65W CPU
                 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
                 * Refer to www.asus.com for CPU support list.
                 ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset       Intel® H610 Chipset
Memory   2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
*Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
Graphics
1 x D-Sub
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Expansion Slots
Intel® 12th Gen Processors
1 x PCIe 4.0 x 16 slot
Intel® H610 Chipset
1 x PCIe 3.0 x 1 slot
Storage
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s ports
Ethernet
1 x Realtek 1Gb Ethernet
USB
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 4 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

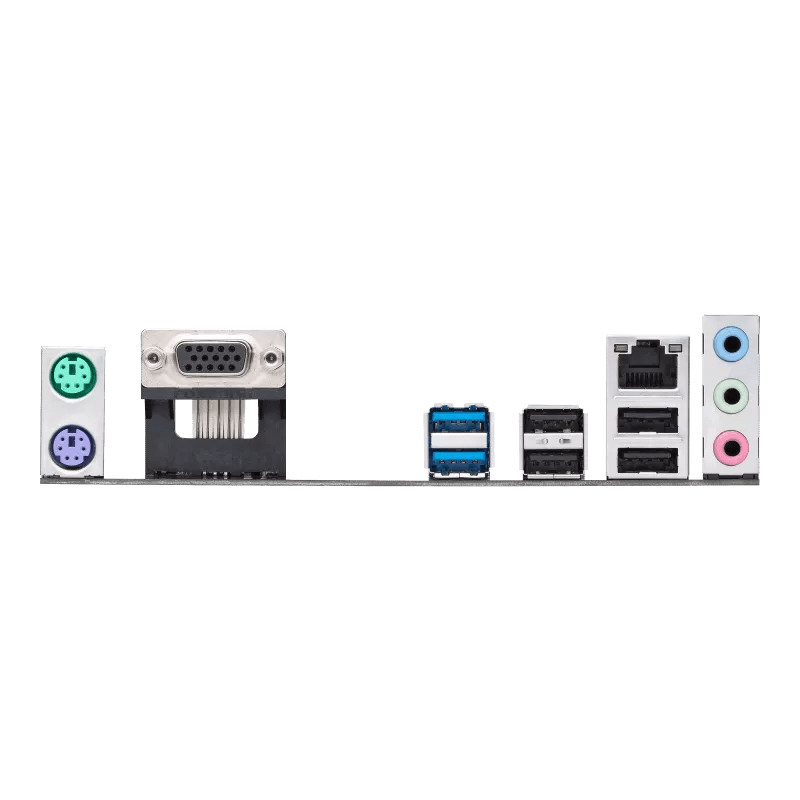

Back Panel I/O Ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x D-Sub port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 4-pin + 12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header support additional 2 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x Speaker header
1 x 10-1 pin System Panel header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
Software Features
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
  TurboV EVO
  EPU
  DIGI+ VRM
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

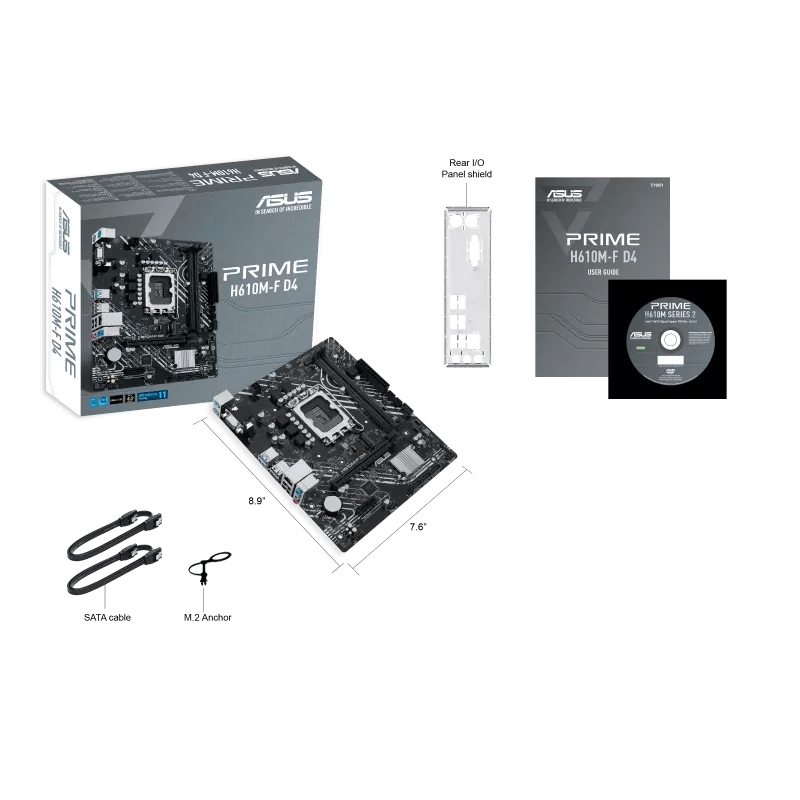

Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 ANCHOR
Installation Media
1 x Support DVD
Documentation
1 x User guide
Operating System
Windows® 11 64-bit, Windows® 10 64-bit
Form Factor
mATX Form Factor
8.9 inch x 7.6 inch (22.6 cm x 19.3 cm )
