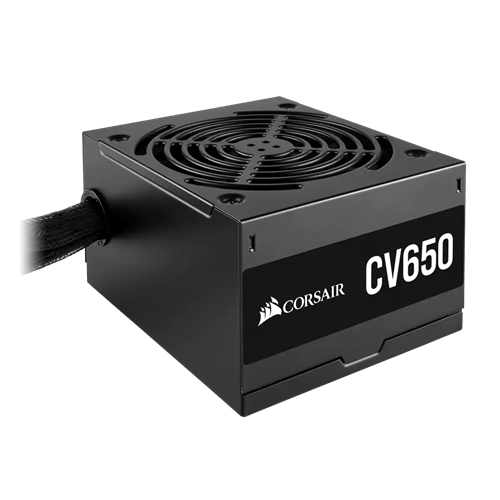

CORSAIR CV Series, CV650

$69

Stock Status: In Stock

Manufacturer: Corsair

CV Series™ CV650 — 650 Watt 80 Plus® Bronze Certified PSU

CORSAIR CV power supplies are ideal for powering your new home or office PC, with 80 PLUS Bronze efficiency guaranteed to continuously deliver full wattage to your system.

MODELRPS0128
PART NO.CP-9020236
AC Input Rating
AC INPUT100-240V
INPUT CURRENT10A-5A
FREQUENCY47~63Hz
 Max LoadMax Output
+5V20A130W
+3.3V24A
+12V52A624W
-12V0.3A3.6W
+5VSB3A15W
TOTAL POWER650W



Weight 1.9
Adjustable Single/Multi 12V Rail No
ATX Connector 1
ATX12V Version v2.31
Continuous output rated temperature C 30°C
Continuous power W 650 Watts
Fan bearing technology Sleeve Bearing
Fan size mm  140mm
MTBF hours 100,000 hours
Multi-GPU ready No
Warranty 3 Years
80 PLUS Efficiency Bronze
PSU Form Factor ATX
iCUE Compatibility None
Zero RPM Mode No
Cable Type Sleeved and Flat Black Cables
EPS12V Connector 1
EPS12V Version v2.92
Floppy Connector 1
Modular No
PCIe Connector 2
SATA Connector 7
Special Technology None
Protections OVP (Over Voltage)
                    UVP (Under Voltage)
                   SCP (Short Circuit)
                   OTP (Over Temp)
                   OPP (Over Power)
