Stock Status: In Stock
Manufacturer: SAMSUNG
Product Type

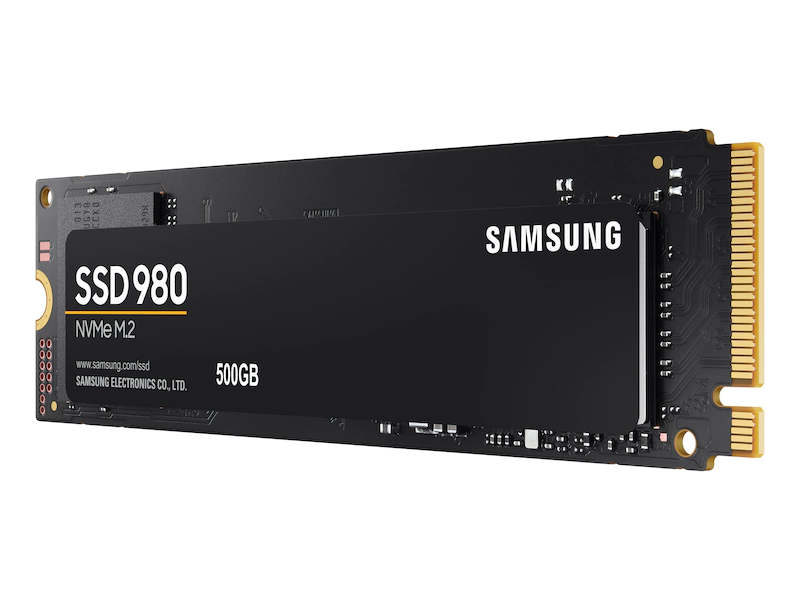

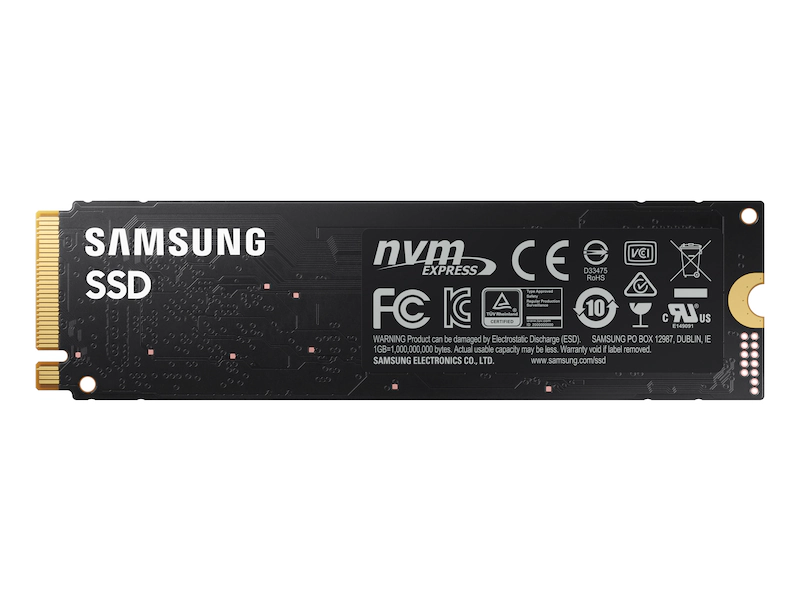

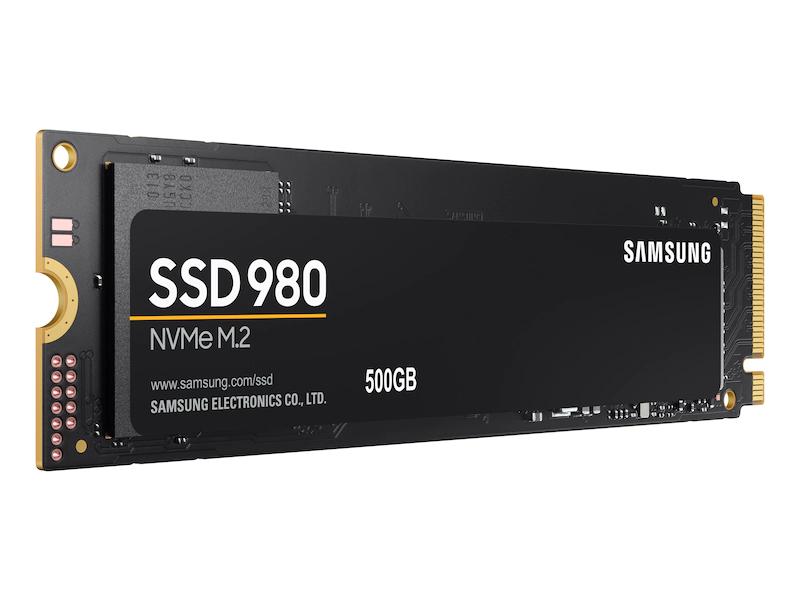

980 PCIe® 3.0 NVMe® SSD 500GB
Family Line
980 PCIe® 3.0 NVMe® SSD
Capacity
500GB
Interface
PCIe® Gen 3.0 x4, NVMe® 1.4
Dimension (WxHxD)
80.15 x 2.38 x 22.15 (mm)
Speed
Read/write speeds up to: 3,100/2,600MB/s
Encryption
AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)
Interface
PCIe® Gen 3.0 x4, NVMe 1.4
Usage Application
Client PCs
Capacity
500GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Sequential Read Speed
Up to 3,100 MB/s * Performance may vary based on system hardware & configuration
Sequential Write Speed
Up to 2,600 MB/s * Performance may vary based on system hardware & configuration
Cache Memory
HMB(Host Memory Buffer)
Trim Support
Supported
S.M.A.R.T. Support
Supported
GC (Garbage Collection)
Auto Garbage Collection Algorithm
WWN Support
Not supported
Device Sleep Mode Support
Yes
Internal Storage
Samsung V-NAND 3-bit MLC
NVMe
PCIe® 3.0
Gaming SSDs
Yes
M.2 2280
Yes
Average Power Consumption (system level)
*Average: 4.3 W* Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle)
Max. 45 mW * Actual power consumption may vary depending on system hardware & configuration
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
Shock
1,500 G & 0.5 ms (Half sine)
Product
M.2 2280
Product
* Limited warranty up to 5 years or up to the TBW for each capacity
