ASUS MB ROG Crosshair VIII Impact

$429

Stock Status: Out of stock

Manufacturer: ASUS

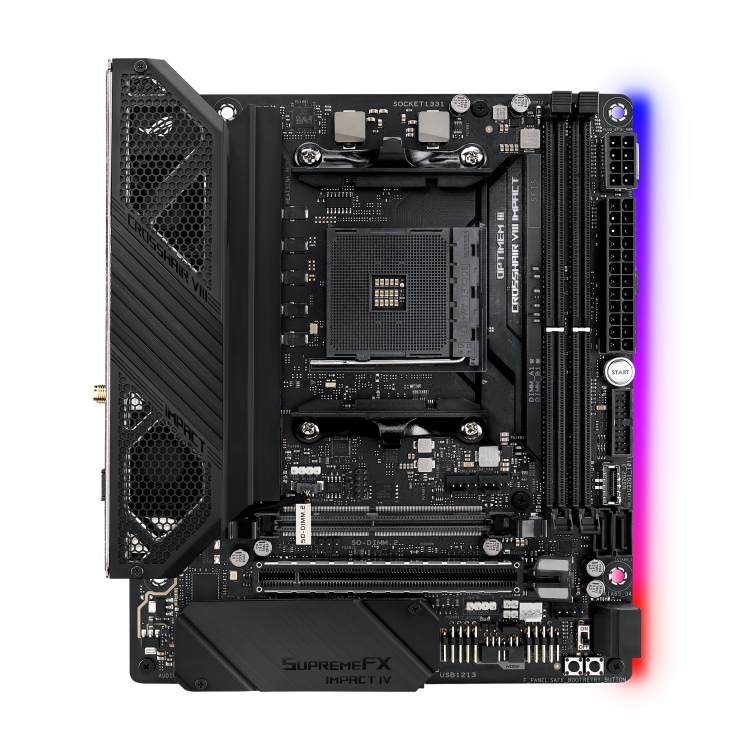

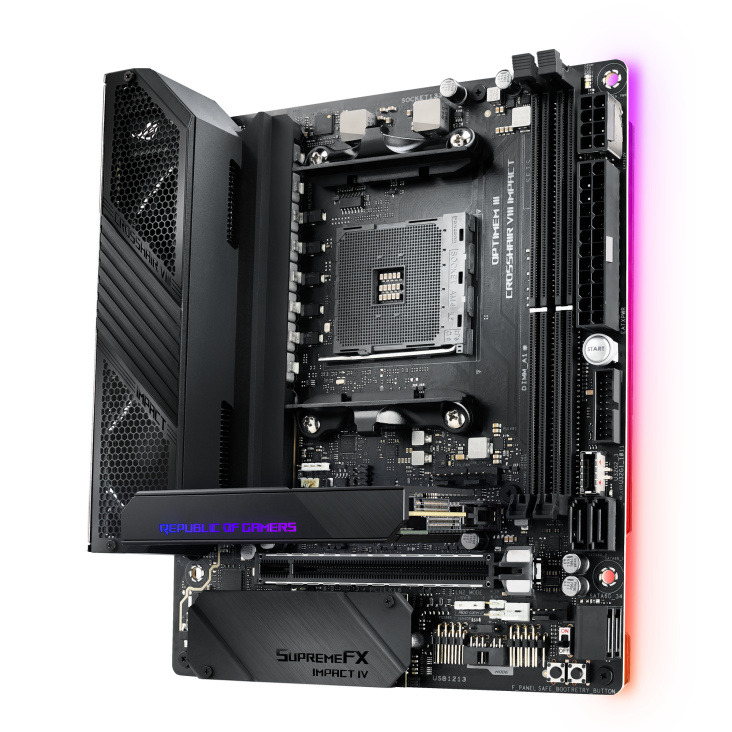

ROG Crosshair VIII Impact

AMD AM4 X570 Mini-DTX enthusiast gaming motherboard with an SO-DIMM.2 card (dual M.2), Wi-Fi 6 (802.11 ax), PCIe 4.0, SupremeFX audio, Aura Sync RGB LED lighting, SATA 6Gb/s and USB 3.2 Gen 2

AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series desktop processors; also supports up to two M.2 drives and features USB 3.2 Gen 2 and AMD StoreMI to maximize connectivity and speed
SO-DIMM.2: Bundled expansion card with heatsink allows two M.2 drives to be connected via an SO-DIMM interface and helps control SSD thermals for maximum performance

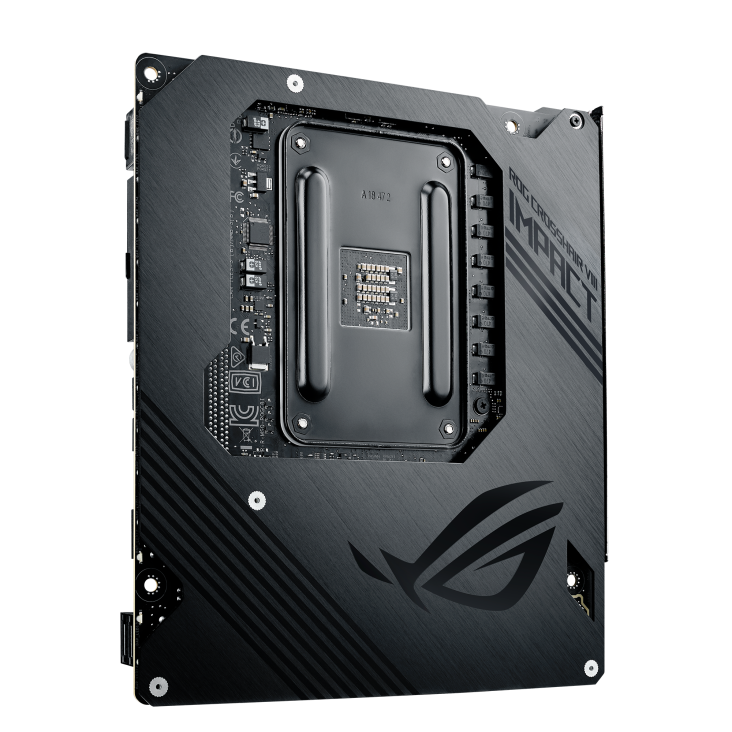

Comprehensive thermal design: An active VRM and chipset combo heatsink and full-sized aluminum backplate with heatpipe add mass to help absorb more heat
High-performance networking: On-board Wi-Fi 6 (802.11ax) with MU-MIMO support and Intel Gigabit Ethernet with ASUS LANGuard supports GameFirst V technologies
Advanced water-cooling features: ROG water-cooling zone, water pump + header, and radiator headers enable easy integration with a custom water-cooling loop
5-Way Optimization: Automated system-wide tuning creates overclocking and cooling profiles tailor made for your rig
DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot and IMPACT Control Card IV , which adds BIOS FlashBack™, Clr CMOS, Q-Code and FlexKey functionality
Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen. 2 addressable headers
Industry-leading ROG audio: SupremeFX S1220 and ESS® SABRE9023P for enthusiast-grade audio performance, Sonic Studio III and DTS Sound Unbound

Description

CPU

AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors

* Refer to www.asus.com for CPU support list

Chipset

AMD X570

Memory

2 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory

2 x DIMM, Max. 64GB, DDR4 5100(O.C)/4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory

4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory

AMD RyzenTM 4000 G-Series Processor

AMD RyzenTM 2000 Series Processors

2 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory

2 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory

* Double Capcity DRAM support depends on the DRAM models

Dual Channel Memory Architecture

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Expansion Slots

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

AMD RyzenTM 3000 G-Series / 2000 G-Series Processors

AMD RyzenTM 4000 G-Series / 2000 Series Processors

1 x PCIe 4.0 x16 (x16 mode)

1 x PCIe 3.0 x16 (x16 mode)

1 x PCIe 3.0 x16 (x8 mode)

Storage

AMD RyzenTM 4000 G-Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors :

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :

1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support

1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

AMD X570 chipset :

1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support

4 x SATA 6Gb/s port(s),

Support Raid 0, 1, 10

LAN

Intel® I211-AT

ASUS LAN Guard

ROG GameFirst Technology

Wireless Data Network

Intel® Wi-Fi 6 AX200

Supports channel bandwidth: HT20/HT40/HT80/HT160

2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz

Up to 2.4Gbps transfer speed

Bluetooth

Bluetooth® 5.0

Audio

ROG SupremeFX8-Channel High Definition Audio CODEC

- Impedance sense for front and rear headphone outputs

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality120dBSNR stereo playback outputand113dBSNR recording input

- SupremeFX Shielding Technology

- ESS® ES9023P

- Supports up to 32-Bit/192kHz playback

Audio Feature :

- Sonic Studio III + Sonic Studio Virtual Mixer

- DTS® Sound Unbound

- Optical S/PDIF out port(s) at back panel

- Sonic Radar III

* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

USB Ports

AMD Ryzen™5000 Series / 4000 G-Series/ 3000 Series Processors :

AMD Ryzen™3000 G-Series / 2000 Series / 2000 G-Series Processors :

2 x USB 3.2 Gen 2 port(s)

2 x USB 3.2 Gen 1 port(s)

2 x USB 2.0 port(s)

4 x USB 3.2 Gen 1 port(s)

1 x USB 3.2 Gen 2 front panel connector port(s)

4 x USB 3.2 Gen 2 port(s)

AMD X570 chipset :

ROG Exclusive Features

- Infineon TDA21472 Power Stage

Extreme Engine Digi+ :

- MicroFine Alloy Chokes

- 10K Black Metallic Capacitors

ROG Extreme OC kit :

- OptiMem III

- Safe Boot button

- Slow Mode

- LN2 Mode

Extreme Tweaker

ROG Patented Pre-mounted I/O Shield

ROG Exclusive Software

- RAMCache III

- RAMDisk

- CPU-Z

- GameFirst V

Special Features

- USB BIOS FlashBack™

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App

AURA :

- Aura Lighting Effects Synchronization with compatible ASUS ROG devices

ASUS Exclusive Features :

- AI Suite 3

- Ai Charger

- ASUS CrashFree BIOS 3

- Armoury Crate

- ASUS NODE: hardware control interface

- ASUS EZ Flash 3

- ASUS C.P.R.(CPU Parameter Recall)

- Clear CMOS Button

- Reset Button

- Start Button

- ReTry button

ASUS Q-Design :

- ASUS Q-Code

- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

- ASUS Q-Slot

- ASUS Q-DIMM

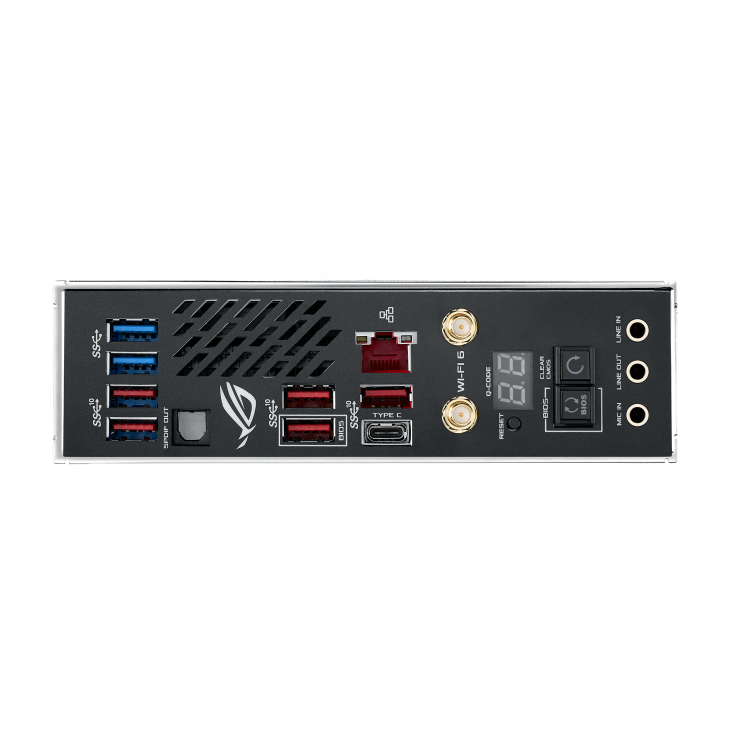

Back I/O Ports

1 x USB BIOS FlashBack™ Button(s)

2 x USB 3.2 Gen 1 (up to 5Gbps) ports

6 x USB 3.2 Gen 2 (up to 10Gbps) ports ()

1 x Q-Code LED

3 x LED-illuminated audio jacks

1 x Optical S/PDIF out

1 x Clear CMOS button(s)

1 x ASUS Wi-Fi Module

Anti-surge LAN (RJ45) port

Internal I/O Ports

2 x Radiator Fan Headers

1 x Aura RGB Strip Headers

2 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support

2 x Addressable Gen 2 header(s)

1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

4 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s)

1 x Chassis Fan connector(s)

1 x W_PUMP+ connector

1 x 24-pin EATX Power connector(s)

1 x 8-pin EATX 12V Power connectors

1 x Front panel audio connector(s) (AAFP)

1 x Slow Mode switch(es)

1 x Reset button(s)

1 x Node Connector(s)

1 x LN2 Mode jumper(s)

1 x Safe Boot button

1 x ReTry button

1 x System panel connector

1 x T_Sensor Connector

1 x W_IN header

1 x W_OUT header

1 x W_FLOW header

1 x Start button

1 x USB 3.2 Gen 2 (up to 10Gbps) connector

1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

Accessories

1 x ROG SO-DIMM.2 with heatsinks

1 x 2-in-1 Rubber pad

1 x Panel cable

2 x M.2 screw kit (short screw and mount)

User´s manual

4 x SATA 6Gb/s cable(s)

1 x Supporting DVD

1 x ROG big sticker

1 x Wi-Fi Antenna(s)

1 x Extension Cable for RGB strips (80 cm)

1 x Extension cable for Addressable LED

1 x ROG coaster(s)

1 x ROG Thank you card

BIOS

256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2

Manageability

WOL, PXE

Operating System

Windows® 10 64-bit

Form Factor

Mini-DTX Form Factor

8 inch x 6.7 inch ( 20.3 cm x 17 cm )

Note

ROG CROSSHAIR VIII IMPACT
