ID-COOLING SE-224-XT ARGB V3

$39

Stock Status: In Stock

Manufacturer: ID-COOLING

  • Compatibility : Intel LGA2066/2011/1200/1151/1150/1155/1156 (V3 : support LGA1700)
  • Compatibility : AMD AM4
  • TDP : 180W
  • Overall Dimension : 120×73×154mm (L×W×H)

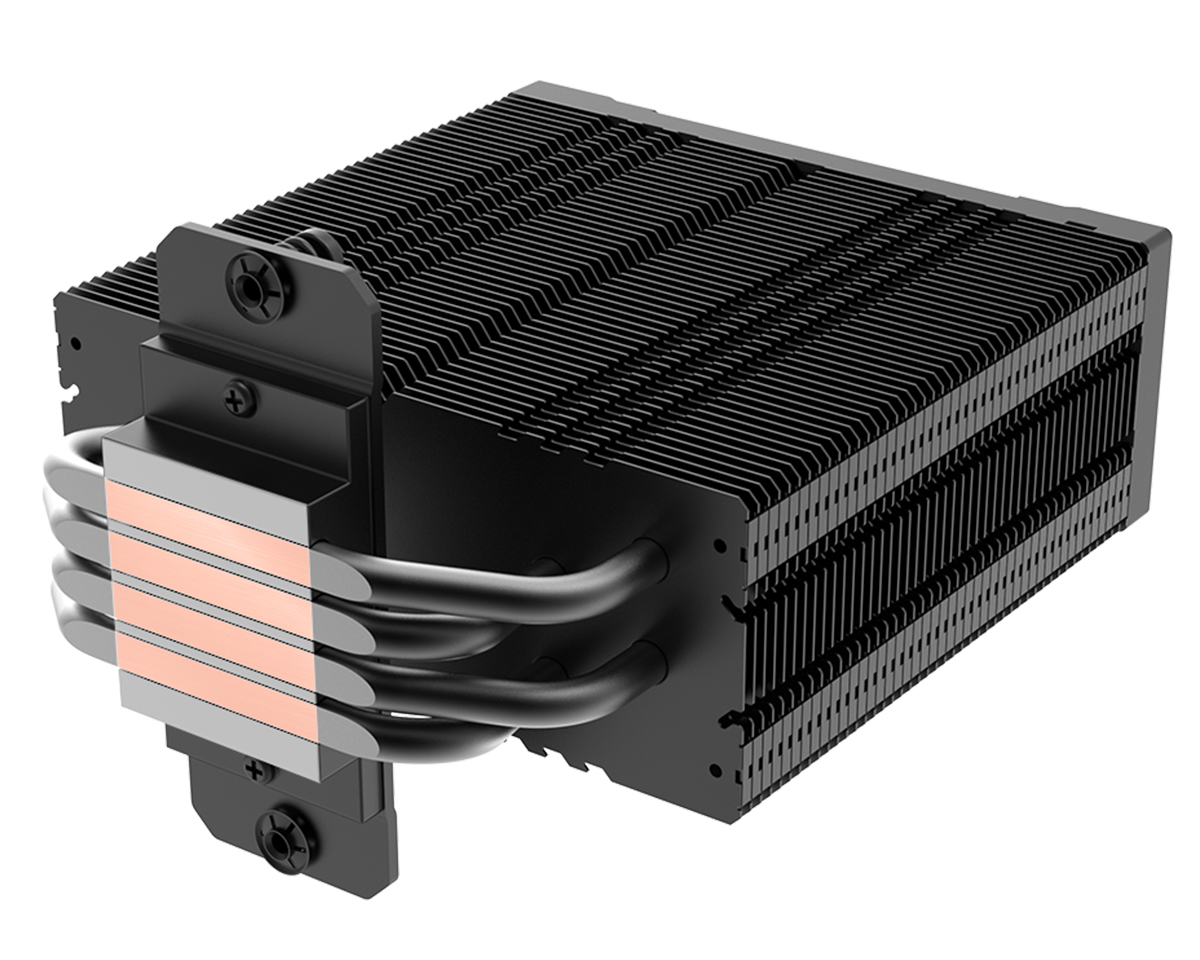

  • Heatsink : 4×Ф6mm Heatpipe(Direct Touch)+Aluminum Fin
  • Fan Dimension : 120×120×25mm
  • Fan Speed : 700±200~1800±10%RPM(PWM)
  • Max Air Flow : 76.16CFM
  • Max Static Pressure : 2.16mmH2O
  • Noise : 15.2-32.5dB(A)
  • Bearing Type : Hydraulic Bearing

   Compatibility

   Intel LGA1700/1200/2066/2011/1151/1150/1155/1156

   AMD AM5/AM4

   TDP

   180W

   Overall Dimension

   120×75×153mm (L×W×H)

   Heatsink Material

   4×Ф6mm Heatpipe(Direct Touch)+Aluminum Fin

   Weight

   830g

   Fan Dimension

   120×120×25mm

   Fan Speed

   500±200~1500±10%RPM(PWM)(ARGB)

   Max. Air Flow

   68.2CFM

   Max. Static Pressure

   1.87mmH2O

   Noise

   13.8-30.5dB(A)

   Rated Voltage

   12VDC (4pin PWM) / 5V (3pin ARGB)

   Operating Voltage

   10.8～13.2VDC

   Started Voltage

   7VDC

   Rated Current

   0.25A

   Power Input

   3W

   Bearing Type

   Hydraulic Bearing

   Connector

   4Pin PWM / 5V 3Pin ARGB
