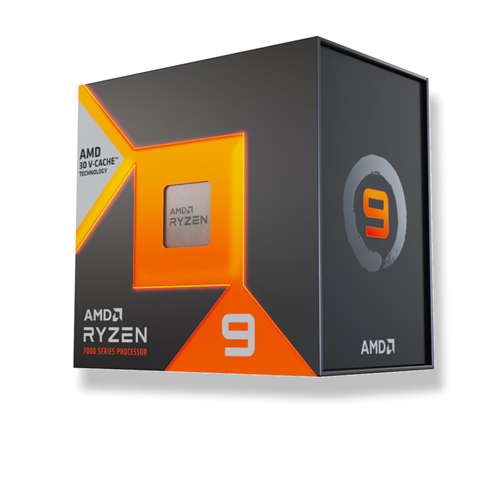

AMD Ryzen™ 9 7950X3D Gaming Processor

$609

Stock Status: In Stock

Manufacturer: AMD





  • General Specifications

    Name
    AMD Ryzen™ 9 7950X3D
    Family
    Ryzen
    Series
    Ryzen 7000 Series
    Form Factor
    Desktops , Boxed Processor
    Market Segment
    Enthusiast Desktop
    AMD PRO Technologies
    No
    Consumer Use
    Yes
    Regional Availability
    Global
    Former Codename
    Raphael AM5
    Architecture
    Zen 4
    # of CPU Cores
    16
    Multithreading (SMT)
    Yes
    # of Threads
    32
    Max. Boost Clock Learn More.

    " class="fass fa-info-circle" data-bs-html="true" data-bs-original-title="

    Max boost for AMD processors is the maximum frequency achievable by a single core on the processor running a bursty single-threaded workload. Max boost will vary based on several factors, including, but not limited to: thermal paste; system cooling; motherboard design and BIOS; the latest AMD chipset driver; and the latest OS updates. GD-150. Learn More.

    " data-bs-placement="top" data-bs-toggle="tooltip" style="box-sizing:border-box;-webkit-font-smoothing:antialiased;display:var(--fa-display,inline-block);font-variant-numeric:normal;font-variant-east-asian:normal;font-variant-alternates:normal;font-variant-position:normal;line-height:1;text-rendering:auto;font-family:'Font Awesome 6 Sharp';" tabindex="0" title="">
    Up to 5.7 GHz
    Base Clock
    4.2 GHz
    L1 Cache
    1 MB
    L2 Cache
    16 MB
    L3 Cache
    128 MB
    Default TDP
    120W
    Processor Technology for CPU Cores
    TSMC 5nm FinFET
    Processor Technology for I/O Die
    TSMC 6nm FinFET
    CPU Compute Die (CCD) Size
    71mm²
    I/O Die (IOD) Size
    122mm²
    Package Die Count
    3
    AMD EXPO™ Memory Overclocking Technology
    Yes
    Precision Boost Overdrive
    Yes
    Curve Optimizer Voltage Offsets
    Yes
    AMD Ryzen™ Master Support
    Yes
    CPU Socket
    AM5
    Supporting Chipsets
    A620 , X670E , X670 , B650E , B650
    CPU Boost Technology
    Precision Boost 2
    Instruction Set
    x86-64
    Supported Extensions
    AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
    Thermal Solution (PIB)
    Not Included
    Recommended Cooler
    Liquid cooler recommended for optimal performance
    Max. Operating Temperature (Tjmax)
    89°C
    Launch Date
    02/28/2023
    *OS Support
    Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

  • Connectivity

    Native USB 3.2 Gen 2 (10Gbps) Ports
    4
    Native USB 3.2 Gen 1 (5Gbps) Ports
    0
    Native USB 2.0 (480Mbps) Ports
    1
    Native SATA Ports
    0
    PCI Express® Version
    PCIe® 5.0
    Native PCIe® Lanes (Total/Usable)
    28 , 24
    Additional Usable PCIe Lanes from Motherboard
    X670E
    12x Gen4
    X670
    12x Gen4
    B650E
    8x Gen4
    B650
    8x Gen4
    NVMe Support
    Boot , RAID0 , RAID1 , RAID10
    System Memory Type
    DDR5
    Memory Channels
    2
    Max. Memory
    128 GB
    System Memory Subtype
    UDIMM
    Max Memory Speed
    2x1R
    DDR5-5200
    2x2R
    DDR5-5200
    4x1R
    DDR5-3600
    4x2R
    DDR5-3600
    ECC Support
    Yes (Requires mobo support)

  • Graphics Capabilities

    Graphics Model
    AMD Radeon™ Graphics
    Graphics Core Count
    2
    Graphics Frequency
    2200 MHz
    USB Type-C® DisplayPort™ Alternate Mode
    Yes

  • Product IDs

    Product ID Boxed
    100-100000908WOF
    Product ID Tray
    100-000000908

  • Key Features

    Supported Technologies
    AMD EXPO™ Technology , AMD Ryzen™ Technologies
