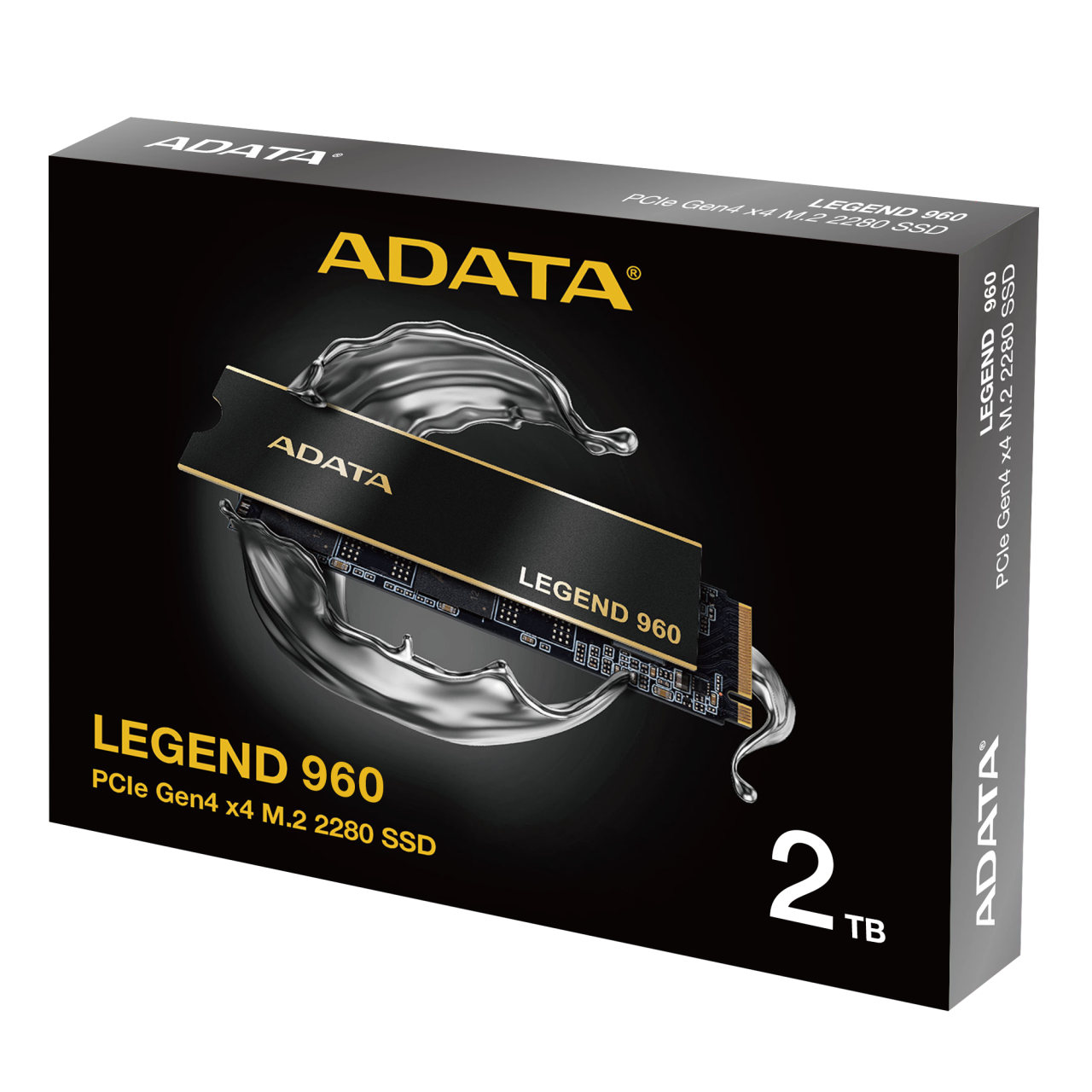

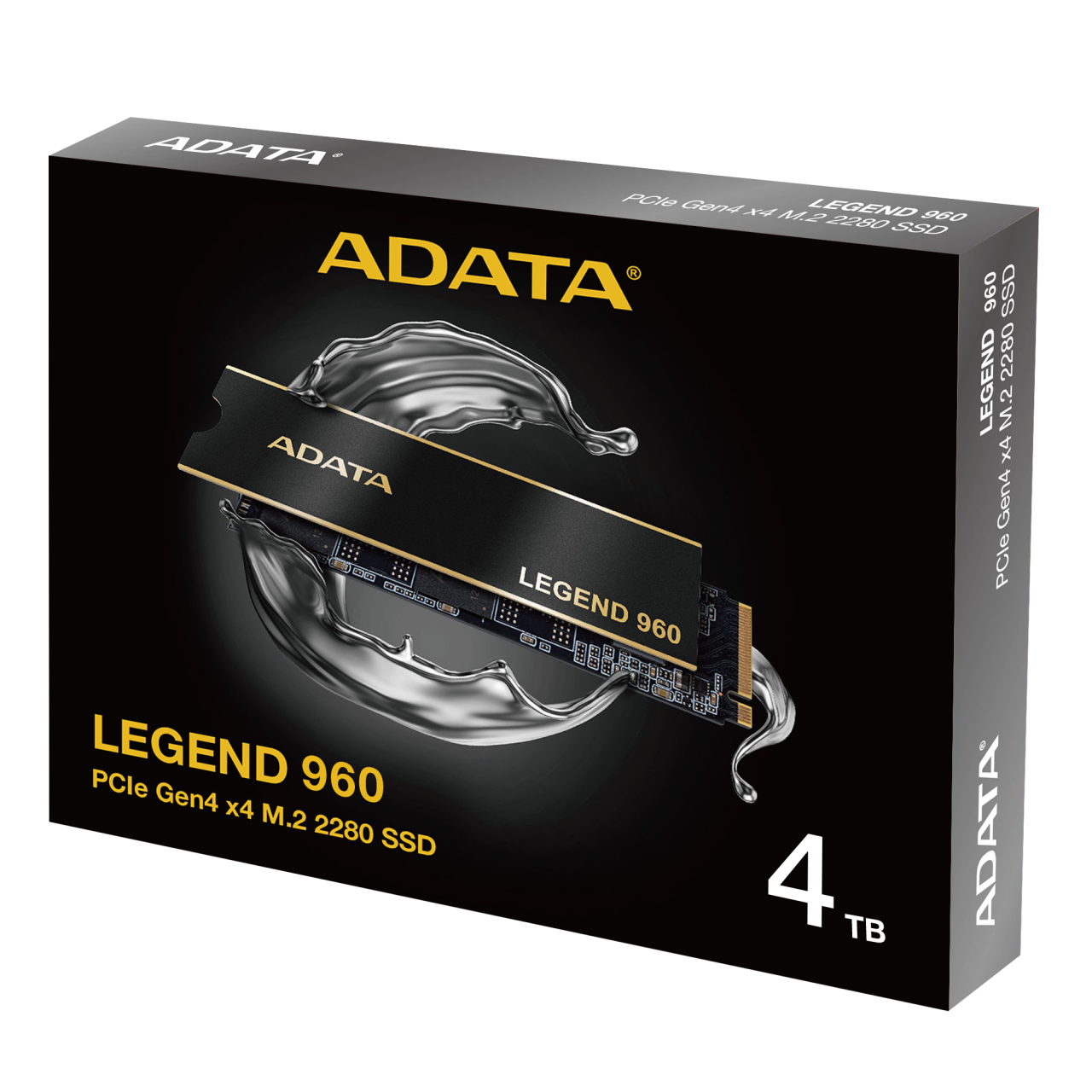

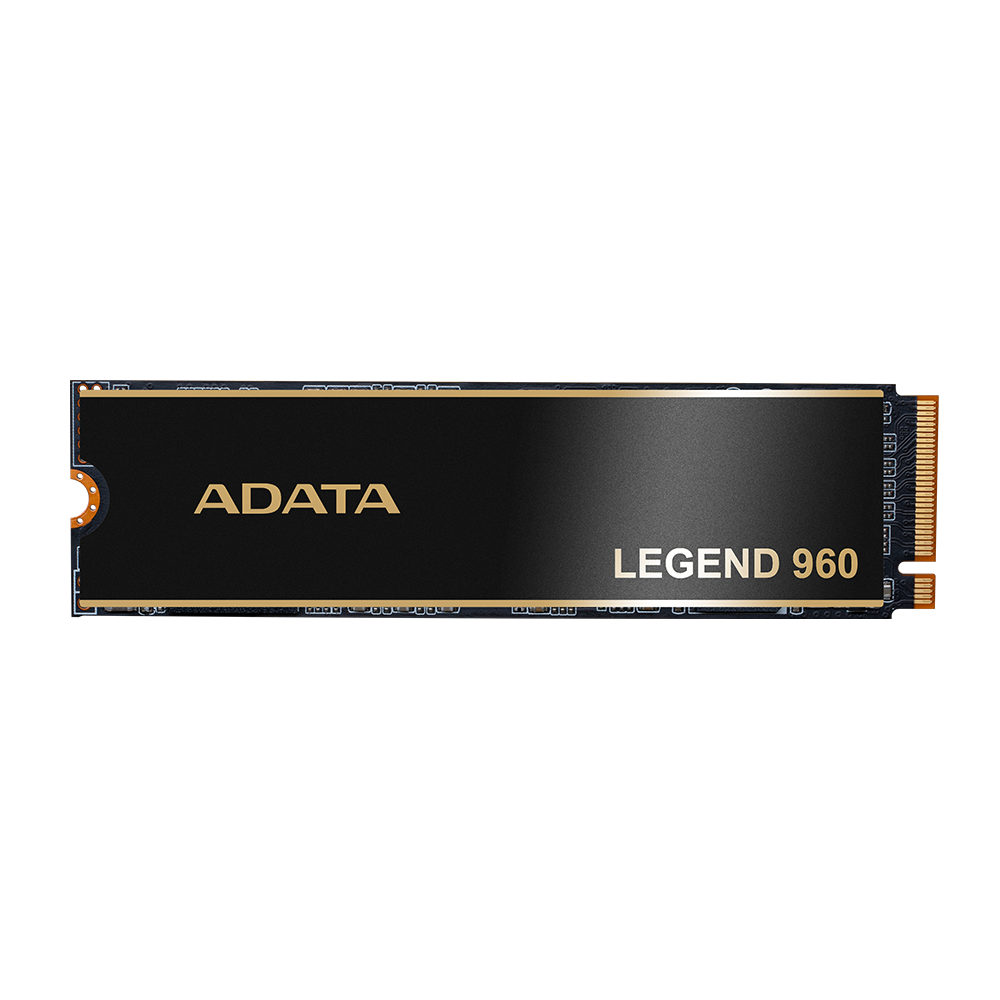

ADATA LEGEND 960 PCIe Gen4 x4 M.2 2280 Solid State Drive


Stock Status: In Stock

Manufacturer: ADATA

LEGEND 960 1TB 95$
LEGEND 960 2TB 175$
LEGEND 960 4B 320$

Capacity1TB / 2TB / 4TB
Form factorM.2 2280
ControllerSMI SM2264
Dimensions (L x W x H)80 x 22 x 4.68mm / 3.15 x 0.87 x 0.18inch (with heat sink)
80 x 22 x 3.38mm / 3.15 x 0.87 x 0.13inch (without heat sink)
Weight12g / 0.42oz (with heat sink)
8g / 0.28oz (without heat sink)
InterfacePCIe Gen4 x4
Sequential Read (Max)Up to 7,400MB/s (PC/Laptop)*,
up to 6,400MB/s (PS5)
Sequential Write (Max)Up to 6,800MB/s*
4KB Random Read IOPS(Max)Up to 750K*
4KB Random Write IOPS(Max)Up to 630K*
Operating temperature0°C - 70°C
Storage temperature-40°C-85°C
Shock resistance1500G/0.5ms
MTBF2,000,000 hours
Terabytes Written (TBW)3,120TB**
Warranty5-year limited warranty***

* This product is compatible with the latest Intel and AMD platforms and must be used with a motherboard that supports PCIe 4.0 to achieve optimal performance. Actual performance may vary depending on the hardware and software configurations.
* This product is backward compatible with PCIe 3.0. If a third-generation PCIe motherboard is used, this product will be able to achieve sequential read/write speeds of 3400/3000MB per second.
* Test system configuration : M/B : MSI X570 Gaming Plus Max , CPU: AMD Ryzen 7 3700X 8-Core Processor 3.6GHz, RAM: ADATA 8G DDR4-266MHz
** The value is the minimum amount of terabyte written that could be reached.
*** The SSD is based on the TBW or Warranty period. Visit more details.
