Manufacturer: Dahua

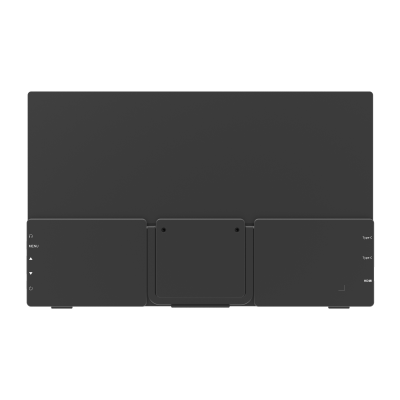

Dahua 15.6'' FHD Touch Portable Monitor
> Adopts an ultra-thin chassis design, simple and compact, saving space.
> FHD high-definition display with IPS technology panel, presenting bright and vivid video.
> Equipped with a fully functional Type-C port, supporting video transmission, data synchronization, and up to 45 W reverse charging for devices, enhancing usage efficiency.
> Supports 10-point multi-touch for intuitive operation, enabling pinch-to-zoom, swiping, and taps to enhance interaction efficiency.
> Use an energy-saving design, compliant with international energy efficiency standards, making it more energy-efficient and environmentally friendly.
> Supports software low blue light feature, protecting the eyes and reducing fatigue.
Display | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Model | DHI-PM16-F201SDT | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
LCD Technology | IPS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Backlight | ELED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Screen Size | 15.6 inch | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Aspect Ratio | 16:9 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Viewing Size | 344.16 (H) × 193.59 (V) mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Screen-to-Body Ratio | ≥80% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Viewing Angle | 178° (H)/178° (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Display Mode | Horizontal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel Pitch | 0.17925 mm × 0.17925 mm (0.00706" × 0.00706") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixels Per Inch | 141.21 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 1920 (H) × 1080 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Refresh Rate | 60 Hz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Display Color | 16.7M colors (6 bits + FRC) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Color Gamut | 45% NTSC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Brightness | 250 cd/m² (max) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Contrast Ratio | 1000:1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Response Time | 6 ms | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lifespan | 30,000 hrs | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operation Hours | 7 × 16 H | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Surface Treatment | Haze 25%, 3H | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Low Blue Light | Software blue light protection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Device Ports | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Input Port | 2 x TYPE-C (full-function), 1 x HDMI 1.4 (1920 x 1080@60 Hz) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Output Port | 1 × Audio out | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Speaker | 2 × 1 W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power & Environmental Conditions | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | 5 VDC, 3 A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Type | External power adapter (without adapter) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | 7.5 W (basic), 7.5 W (typ.), 9 W (max) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Standby Power Consumption | <0.5 W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | 10% - 85% (RH) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity | 5% - 90% (RH) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Inclined Angle | 90° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions | 355.4 mm × 223.2 mm × 12.5 mm (13.99" × 8.79" × 0.49") (W × H × D) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Package Size | 398 mm × 283 mm × 59 mm (15.67" × 11.14" × 2.32") (W × H × D) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frame Width | U/L/R/D: 5.4 mm/5.4 mm/5.4 mm/21.5 mm(0.21" / 0.21" / 0.21" / 0.85") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 0.87 kg (1.92 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 1.4 kg (3.09 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Color | Black | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Control Mode | Four-button | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Status Indicator Light | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wall Mount VESA | 75 mm (2.95") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Accessory | Type-C cable (full-function), HDMI cable, USB to Type-C cable, user manual (QR code sticker), QSG, regulatory manual, energy efficiency label, storage bag | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optional Accessory | Wall mount | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Touchscreen | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Response Time | ≤10 ms | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Touch Technology | Capacitive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Attachment Method | Zero Air Gap | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Touch Points | 10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Touch Accuracy | ± 1 mm (0.04") (over 90% area) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Valid Touch | 2 mm (0.08") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | CE EMC, CE LVD, CE ERP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
